Schrodinger Equation

2025

Introduction:

This is one of my projects from PHYS 410. I'm pretty happy with the diagram work and explanation process in the report so chose to add it here. If you only care about visuals, here they are first:

Large Barrier: isometric view on the left, bird's-eye view on the right
Large Barrier: isometric view on the left, bird's-eye view on the right.
Small Barrier: isometric view on the left, bird's-eye view on the right
Small Barrier: isometric view on the left, bird's-eye view on the right.

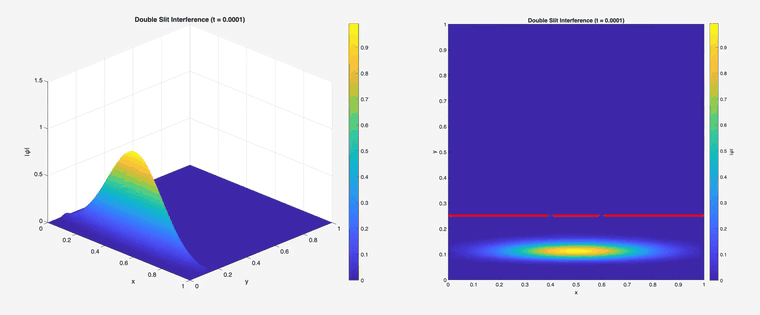

Slit: isometric view on the left, bird's-eye view on the right
Slit: isometric view on the left, bird's-eye view on the right.

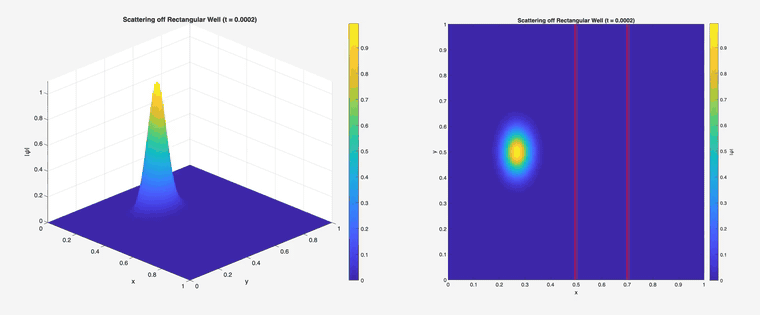

Well: isometric view on the left, bird's-eye view on the right
Well: isometric view on the left, bird's-eye view on the right.

Report:

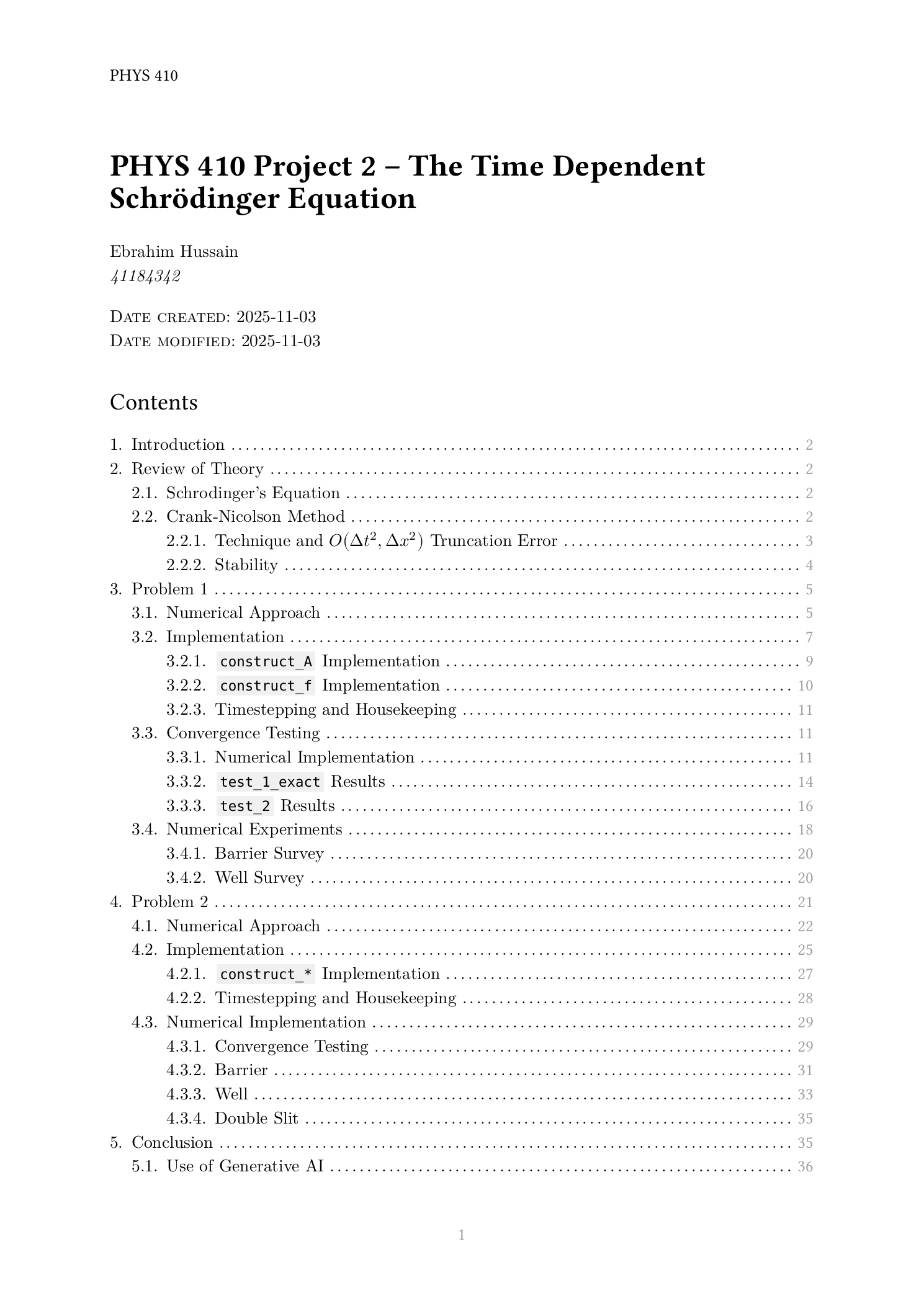

PHYS 410 Project 2 report page 1

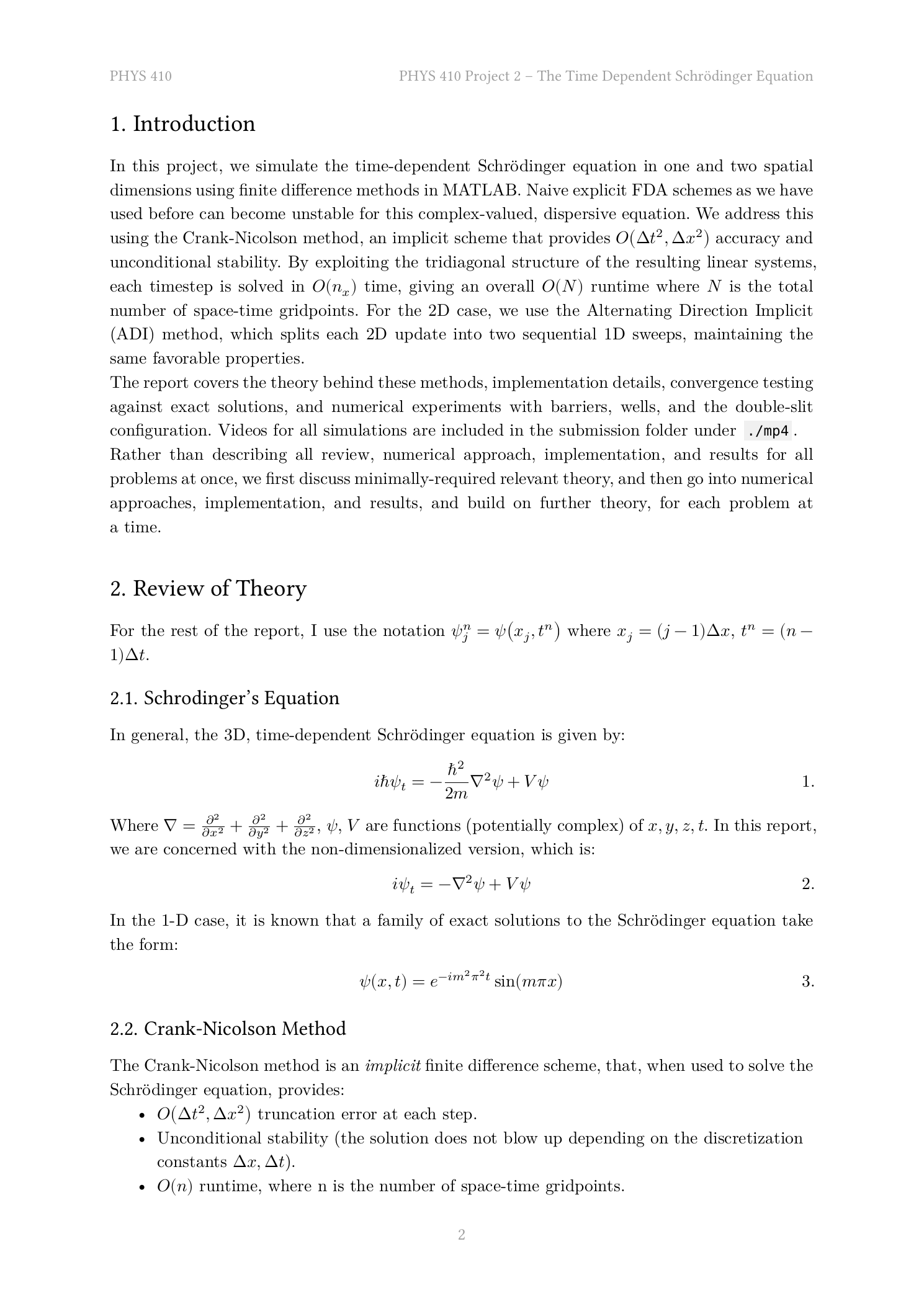

PHYS 410 Project 2 report page 2

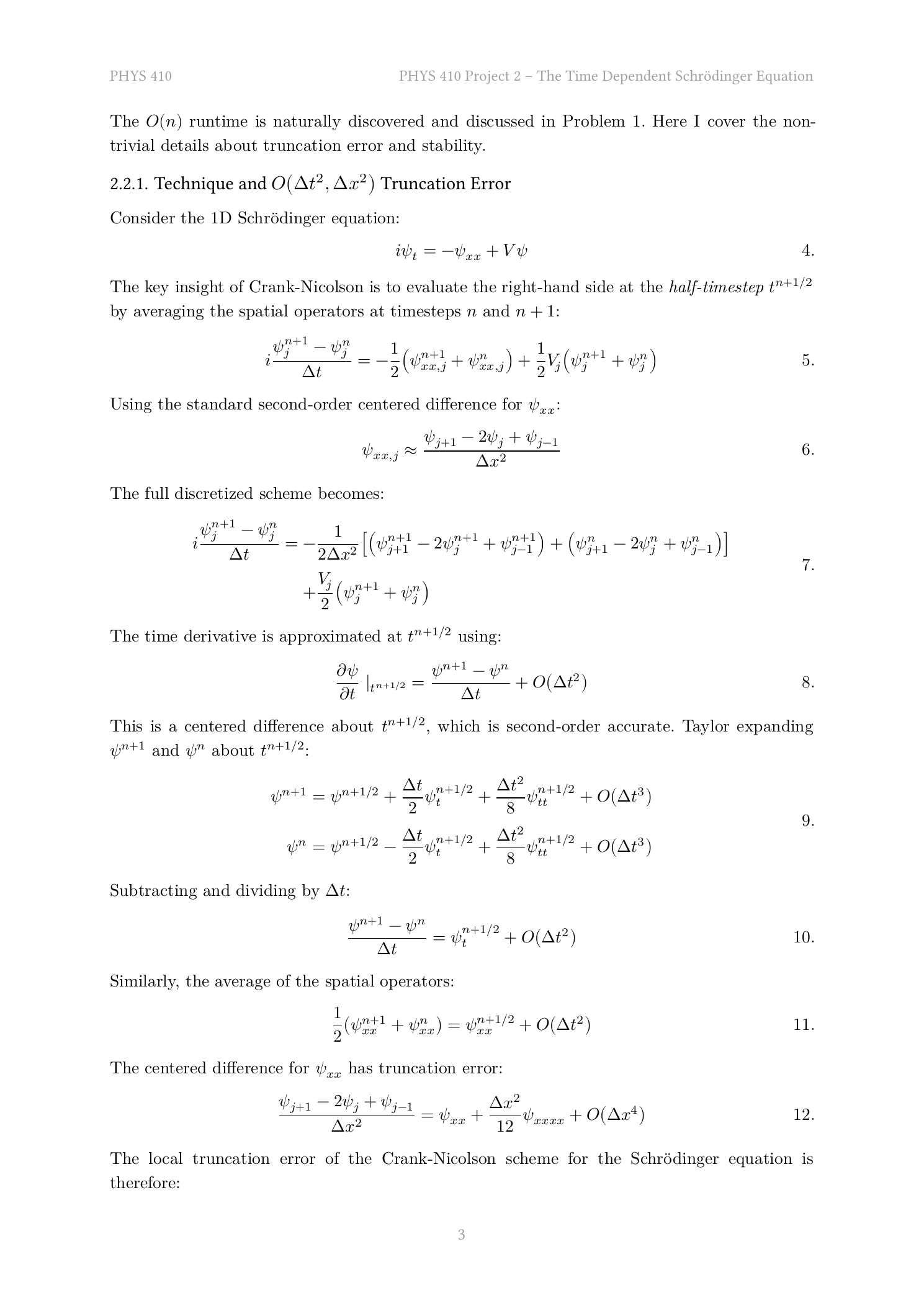

PHYS 410 Project 2 report page 3

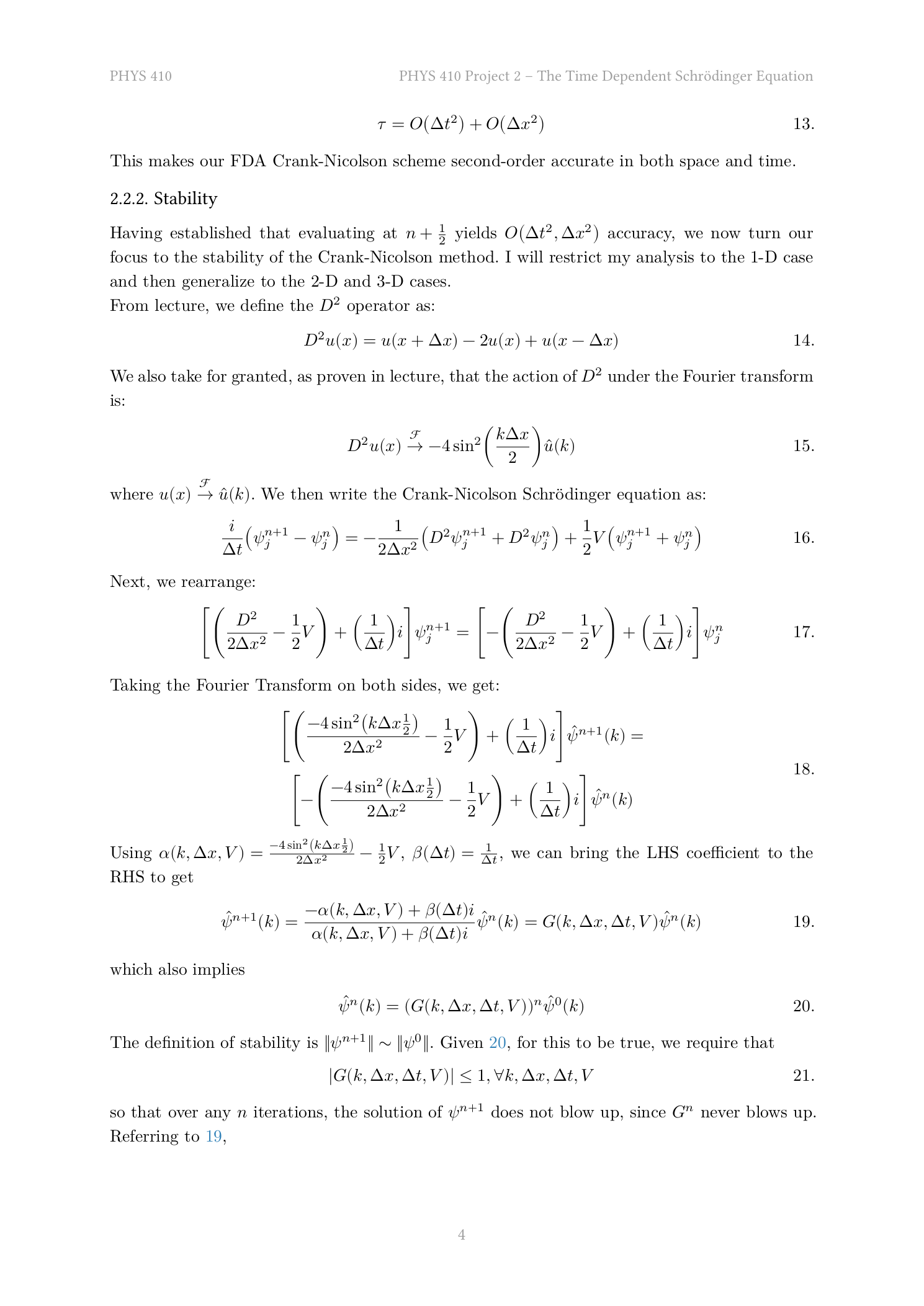

PHYS 410 Project 2 report page 4

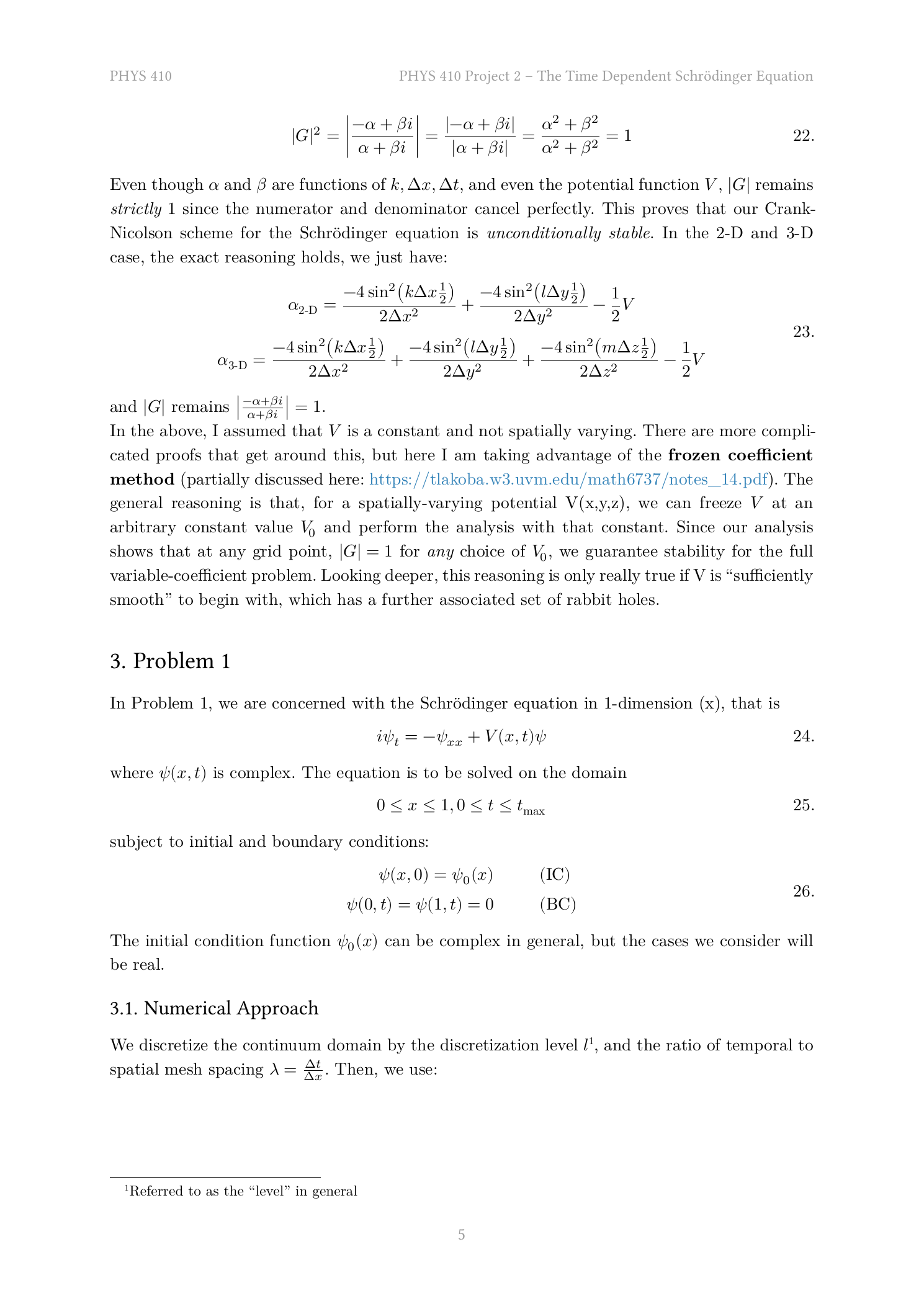

PHYS 410 Project 2 report page 5

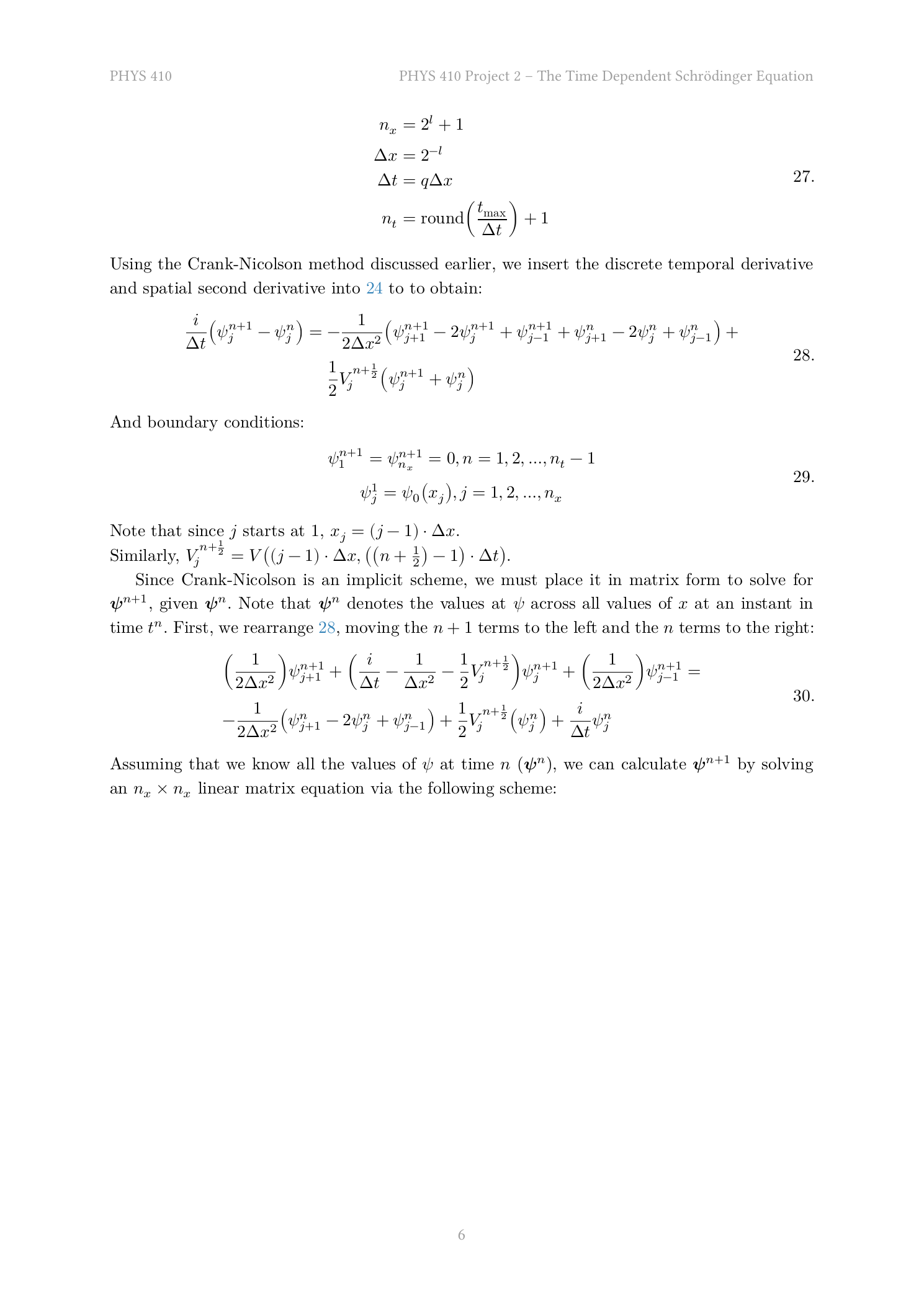

PHYS 410 Project 2 report page 6

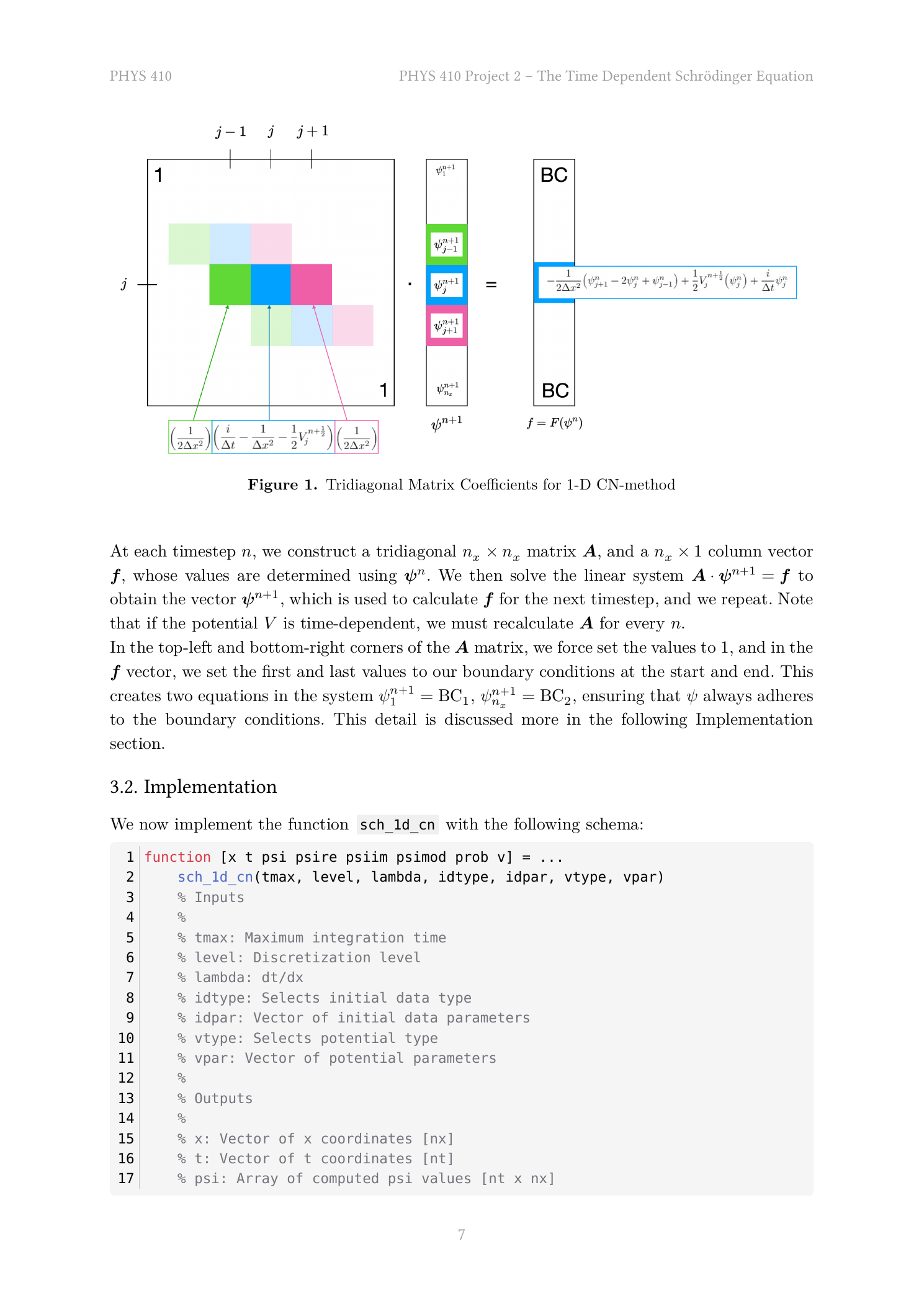

PHYS 410 Project 2 report page 7

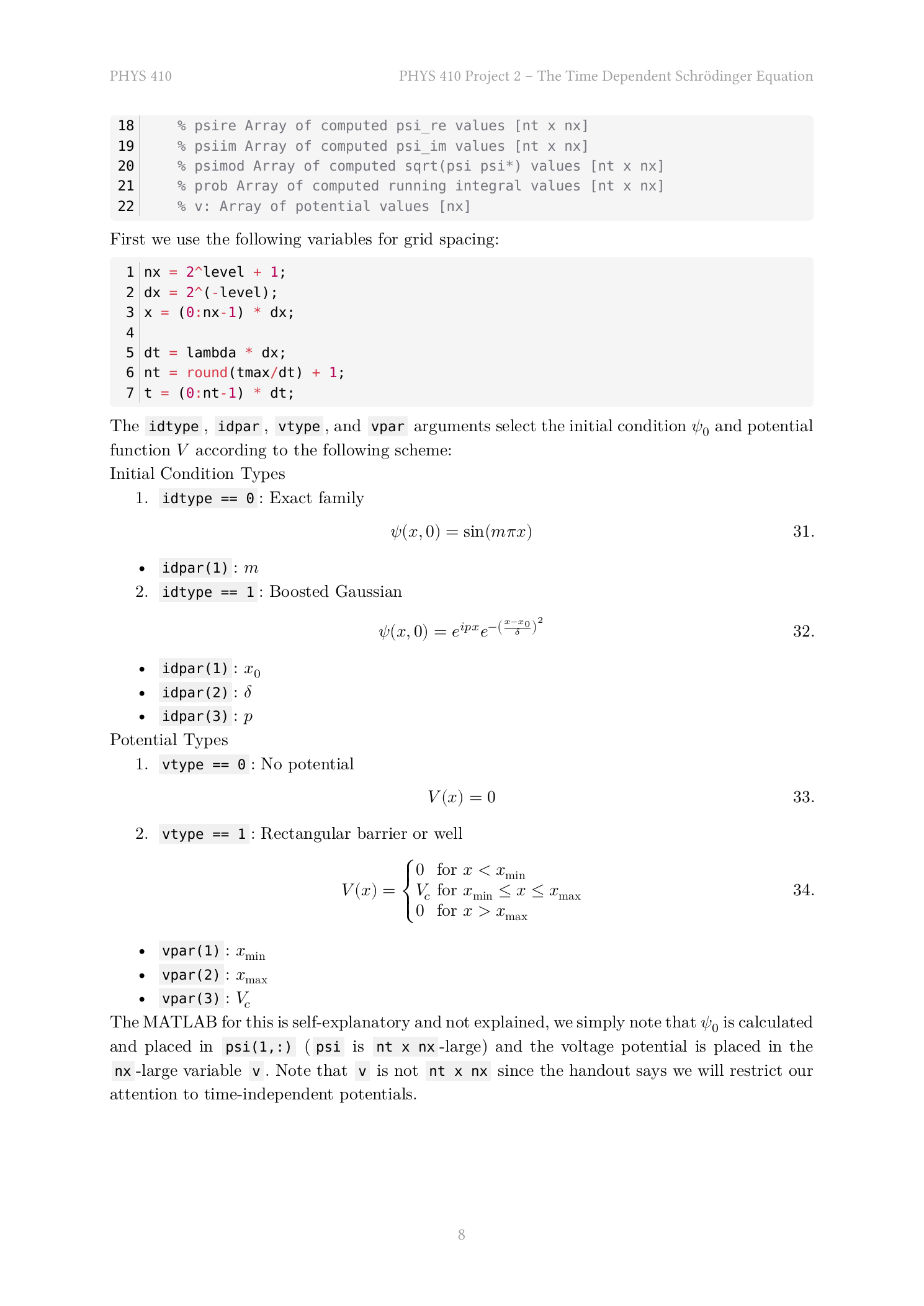

PHYS 410 Project 2 report page 8

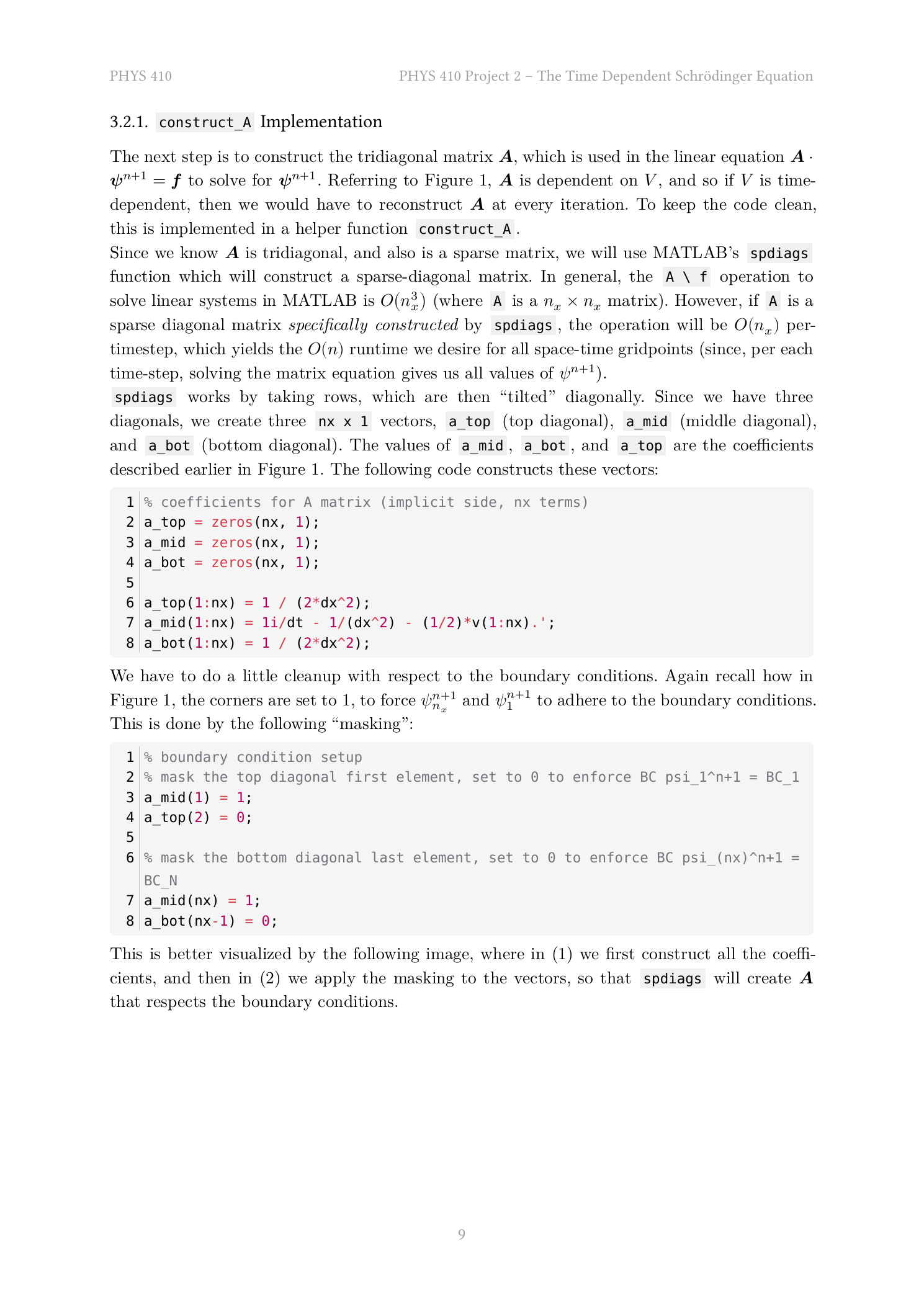

PHYS 410 Project 2 report page 9

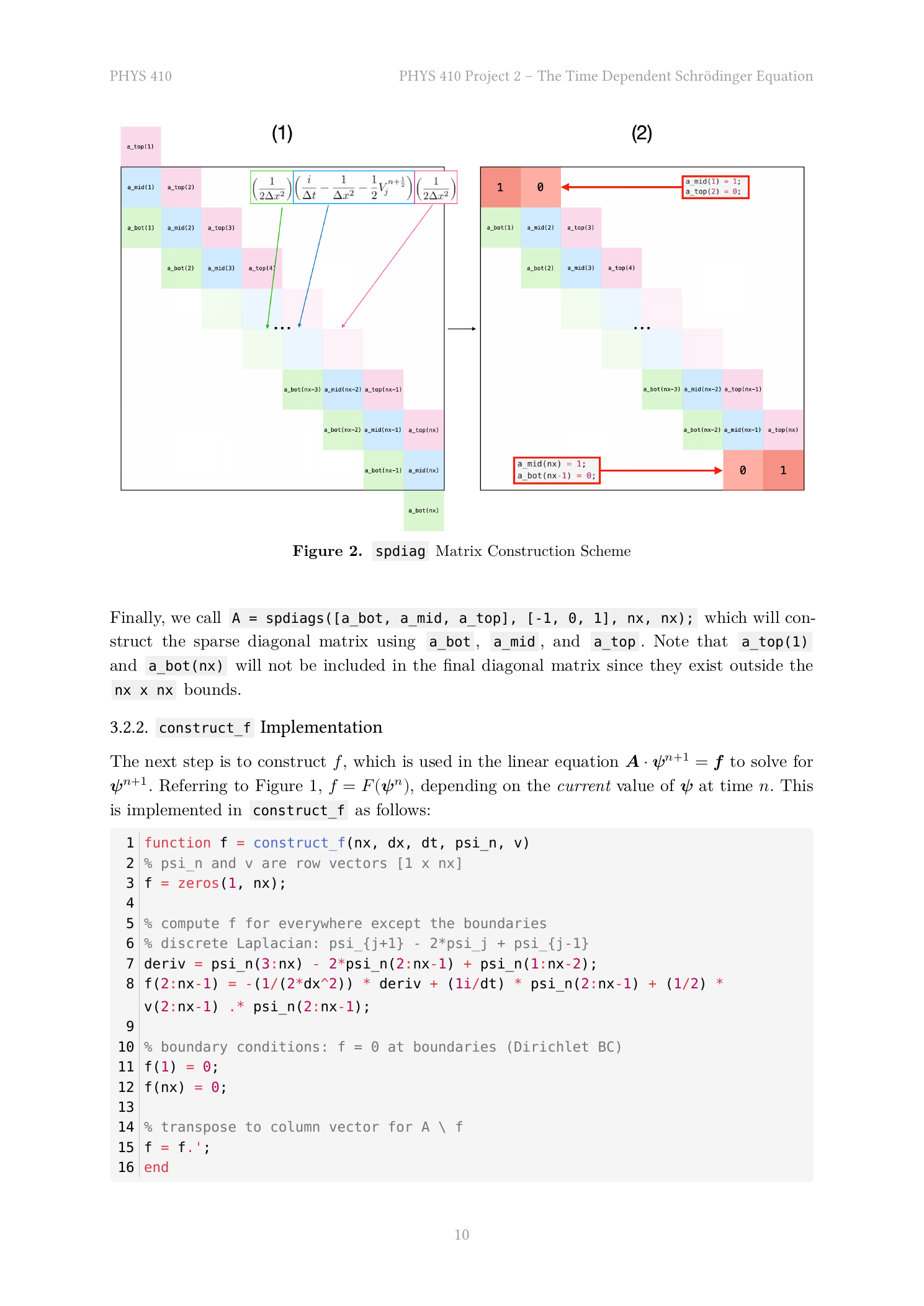

PHYS 410 Project 2 report page 10

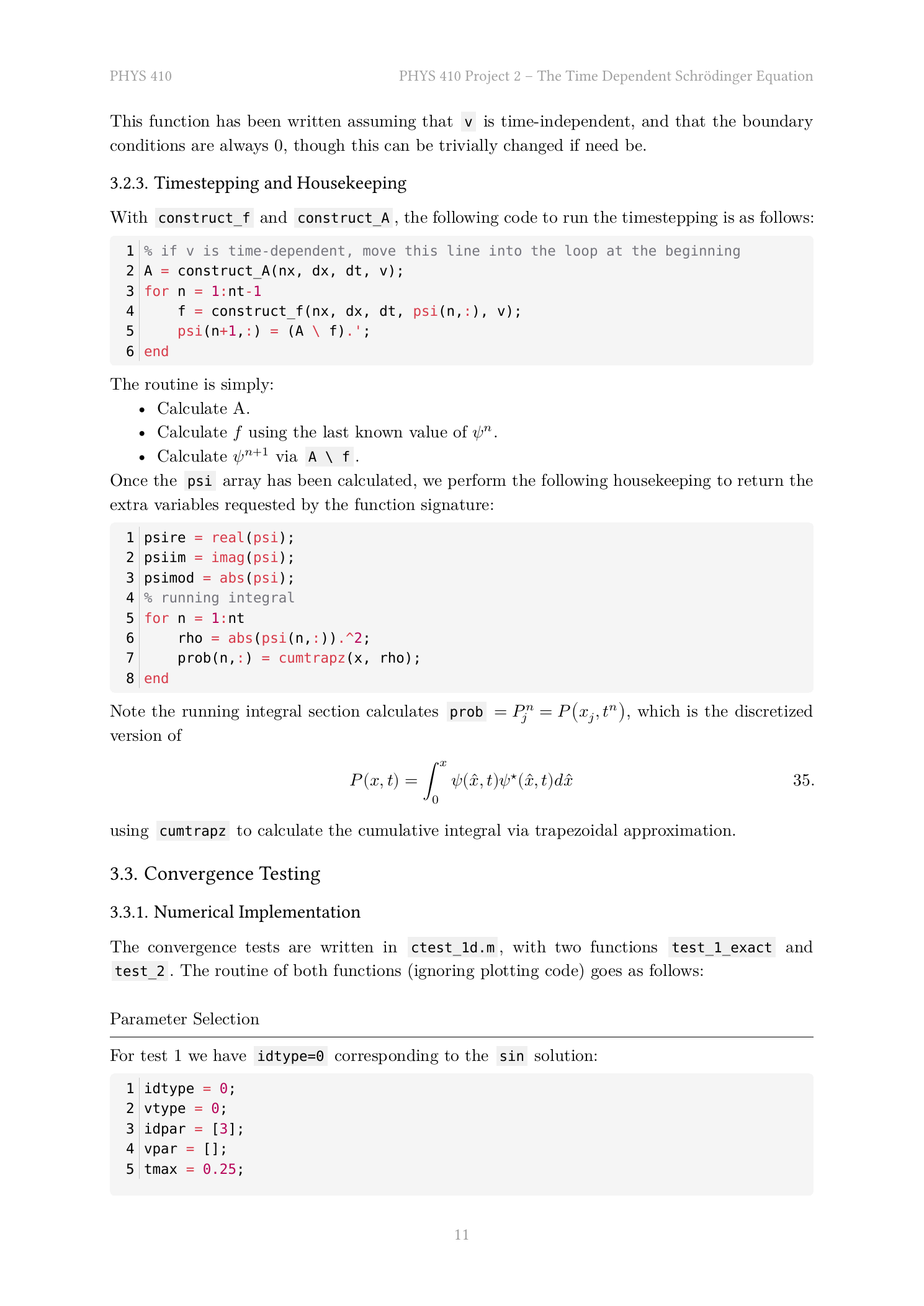

PHYS 410 Project 2 report page 11

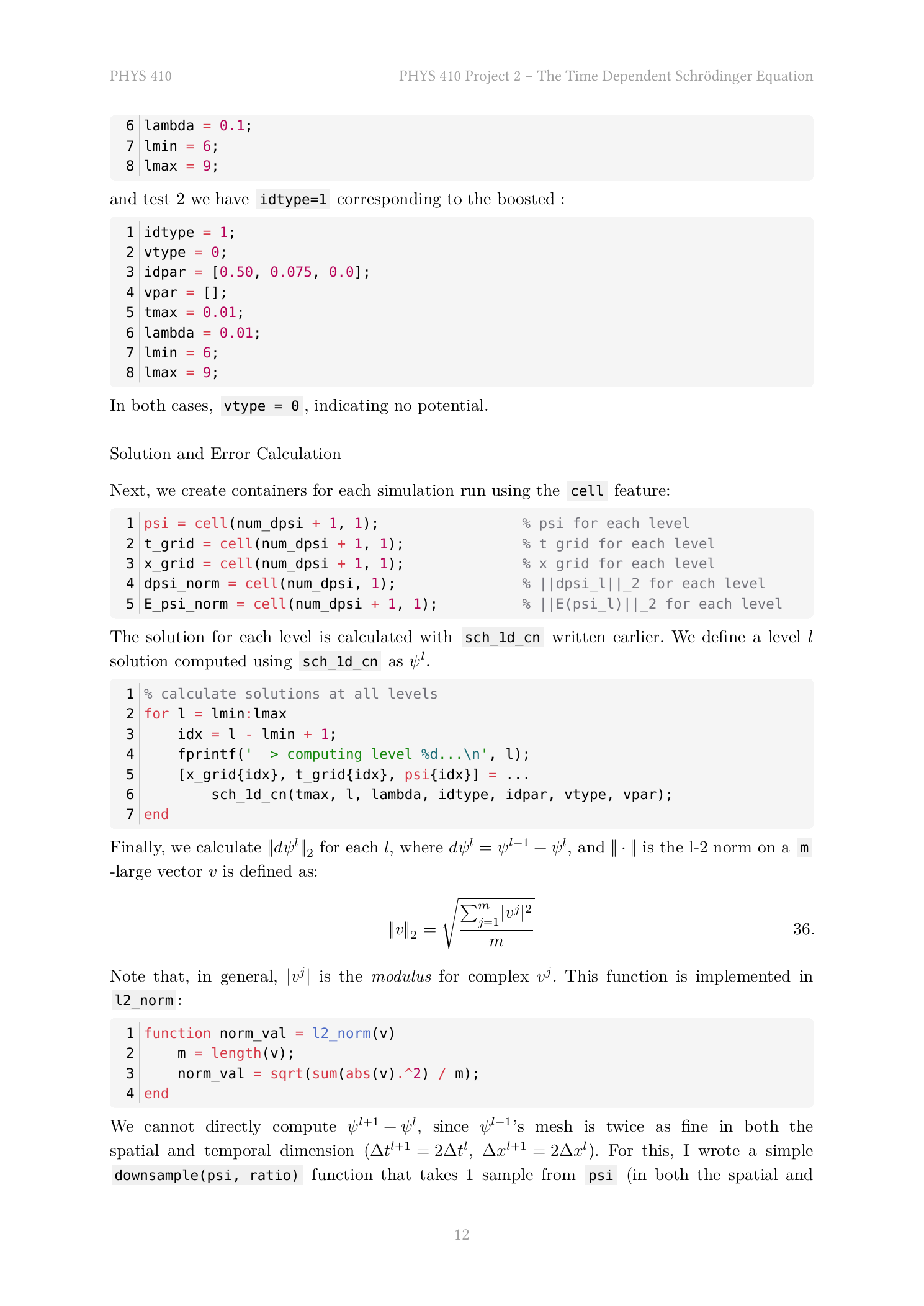

PHYS 410 Project 2 report page 12

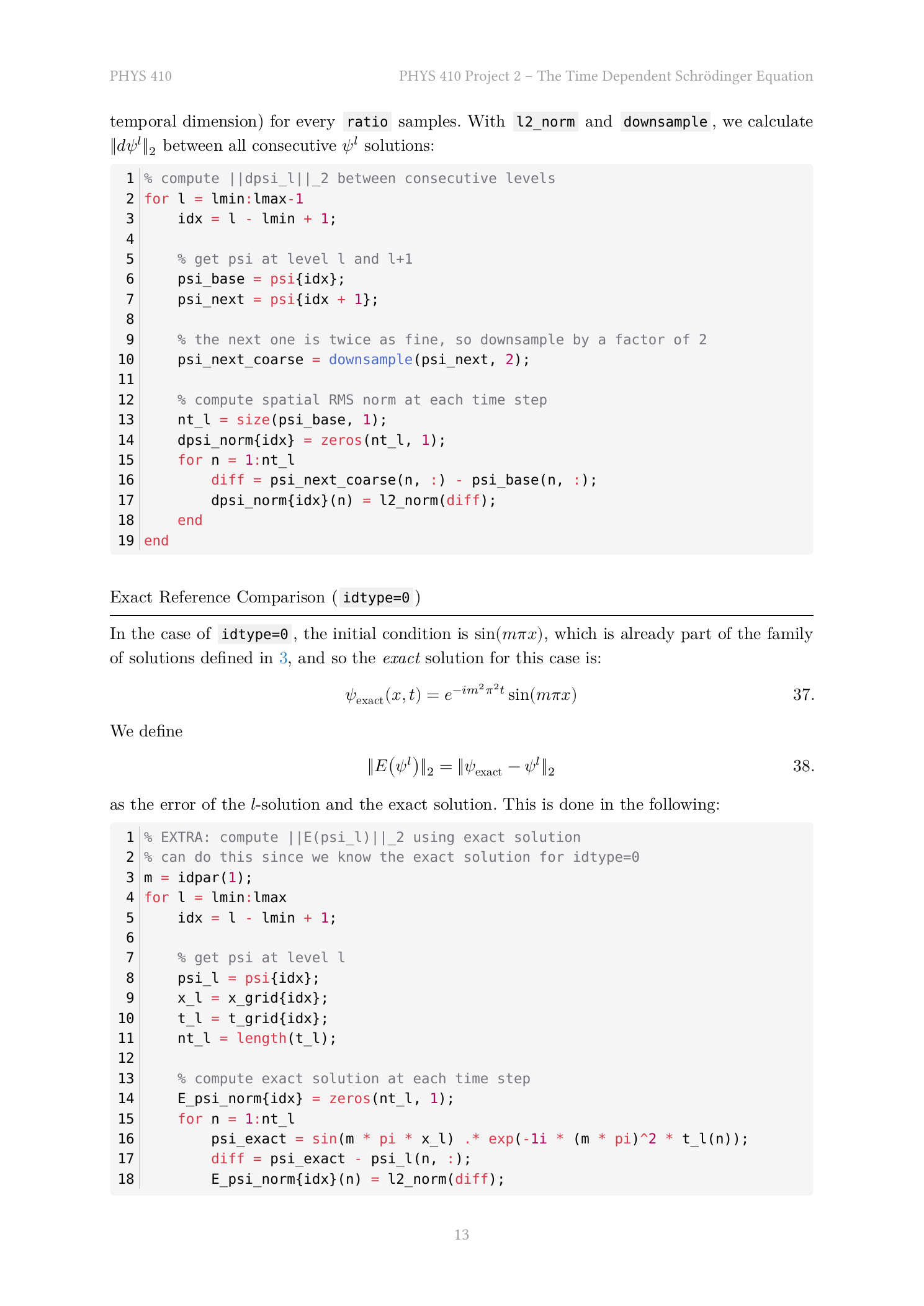

PHYS 410 Project 2 report page 13

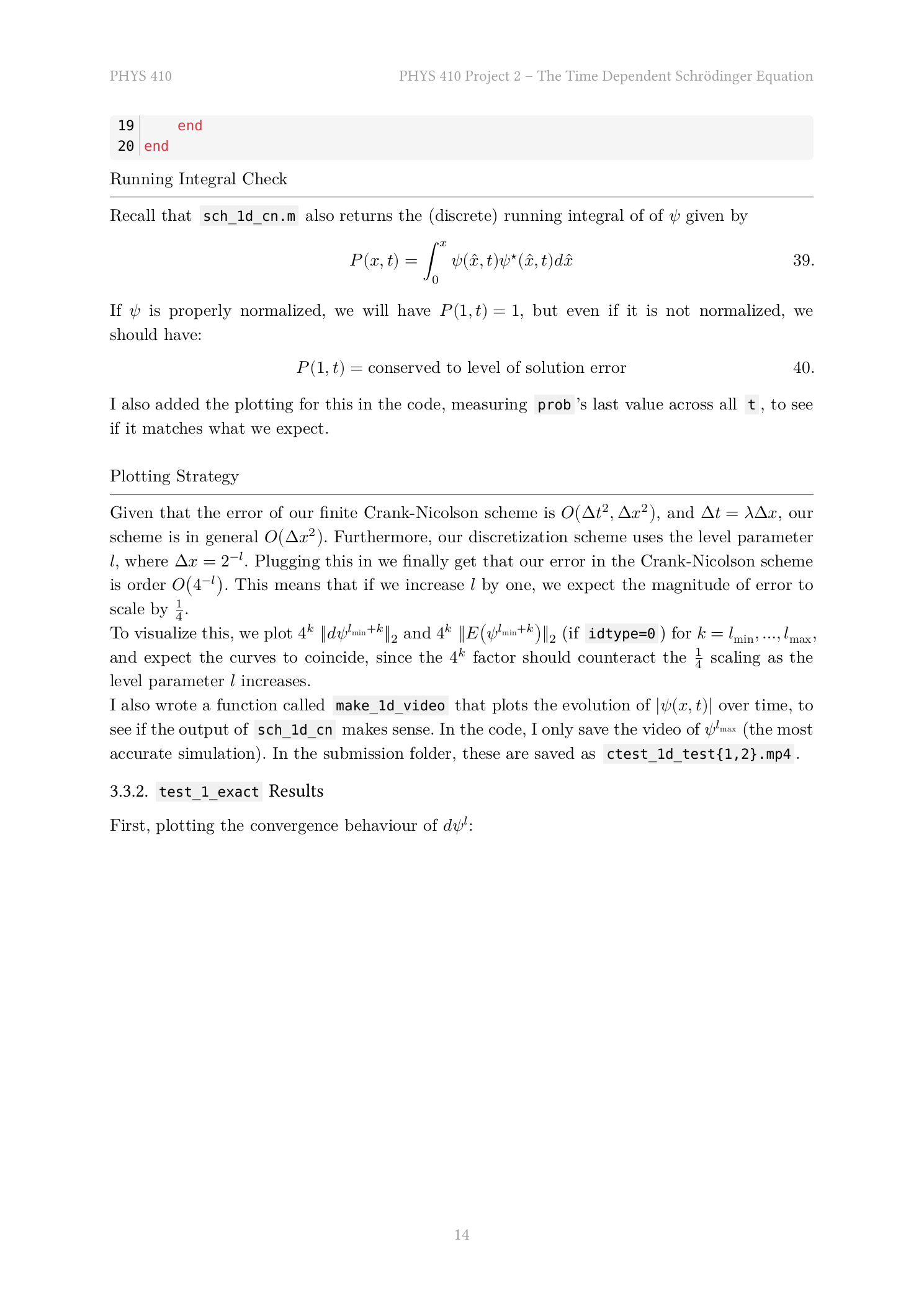

PHYS 410 Project 2 report page 14

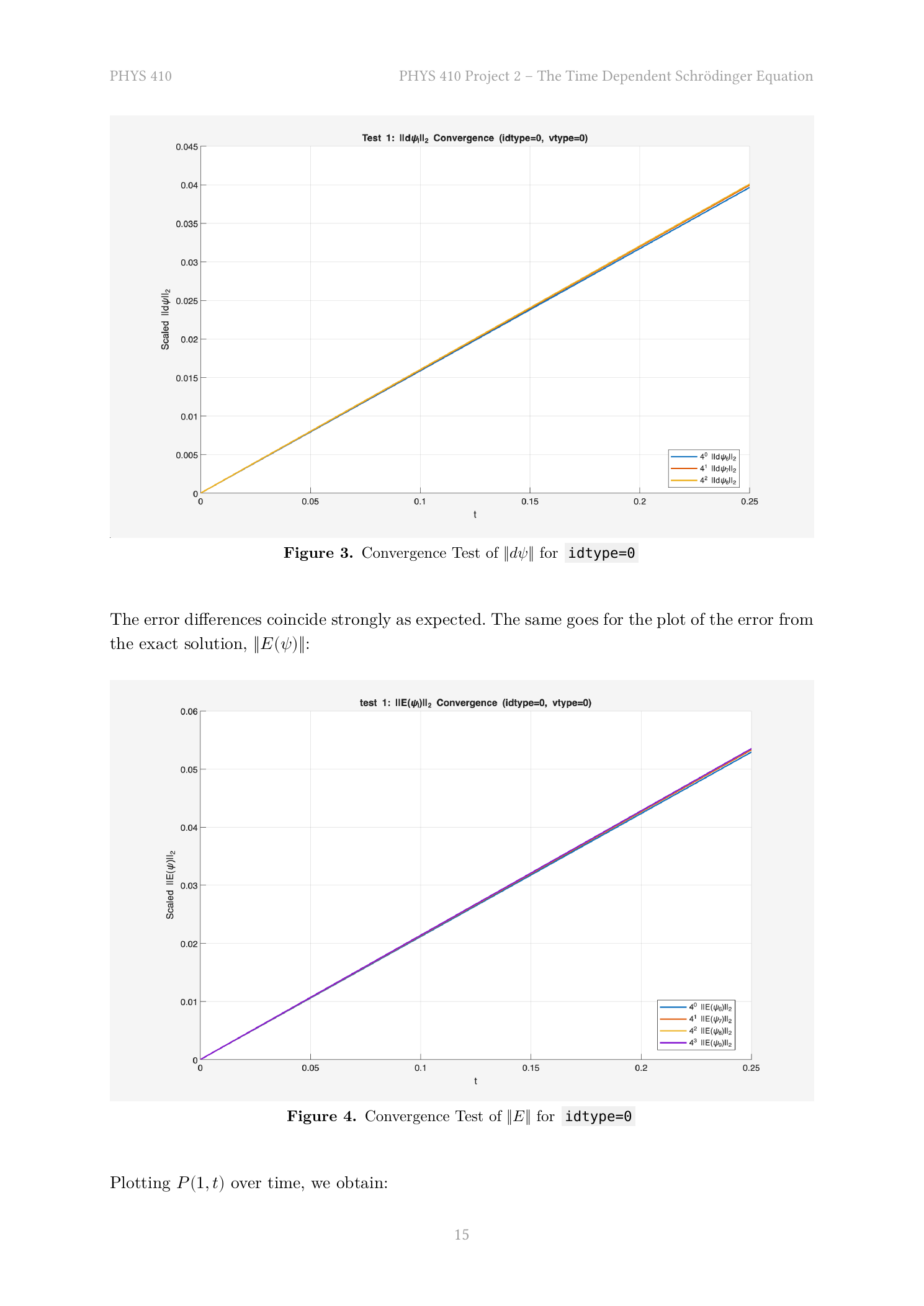

PHYS 410 Project 2 report page 15

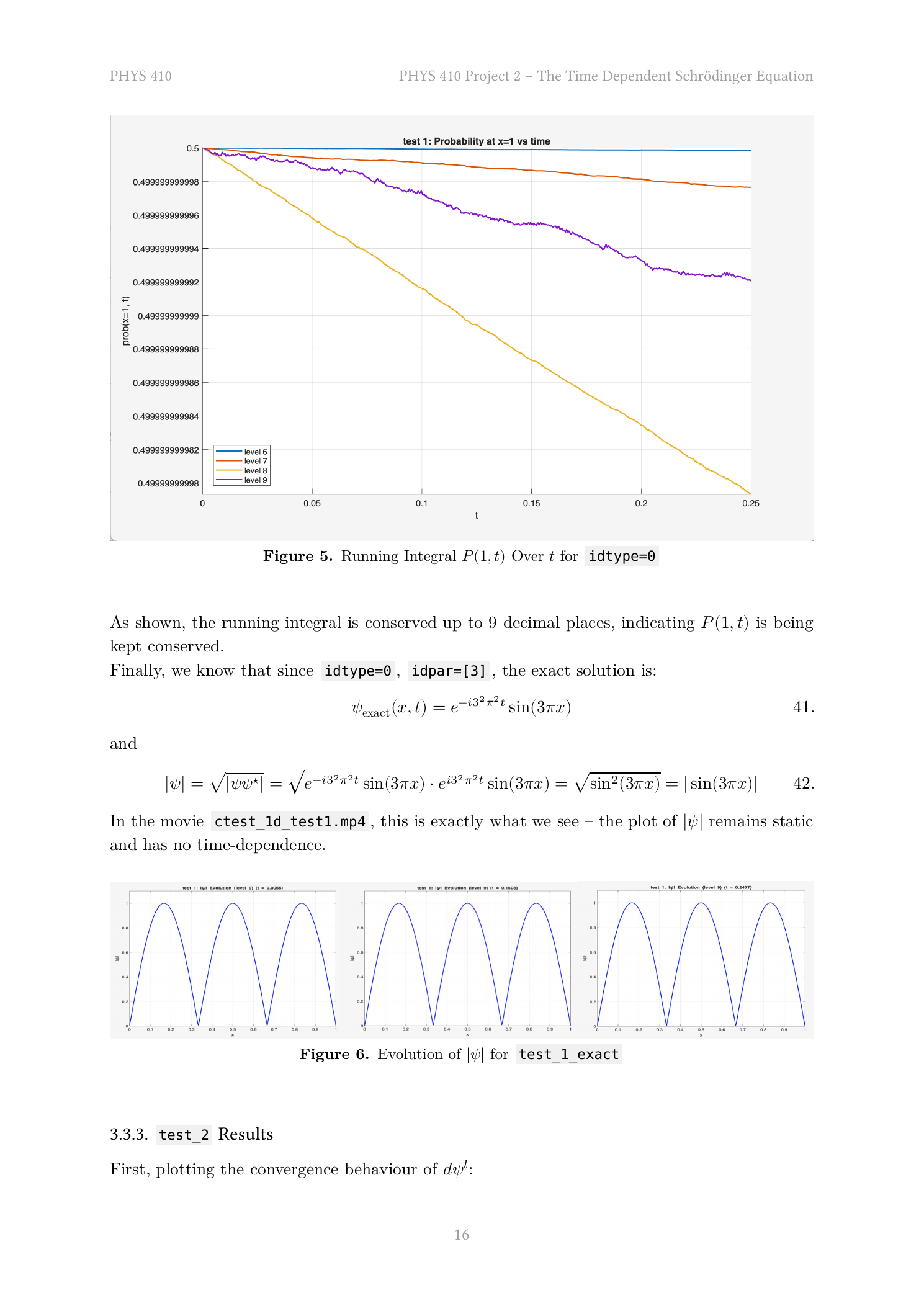

PHYS 410 Project 2 report page 16

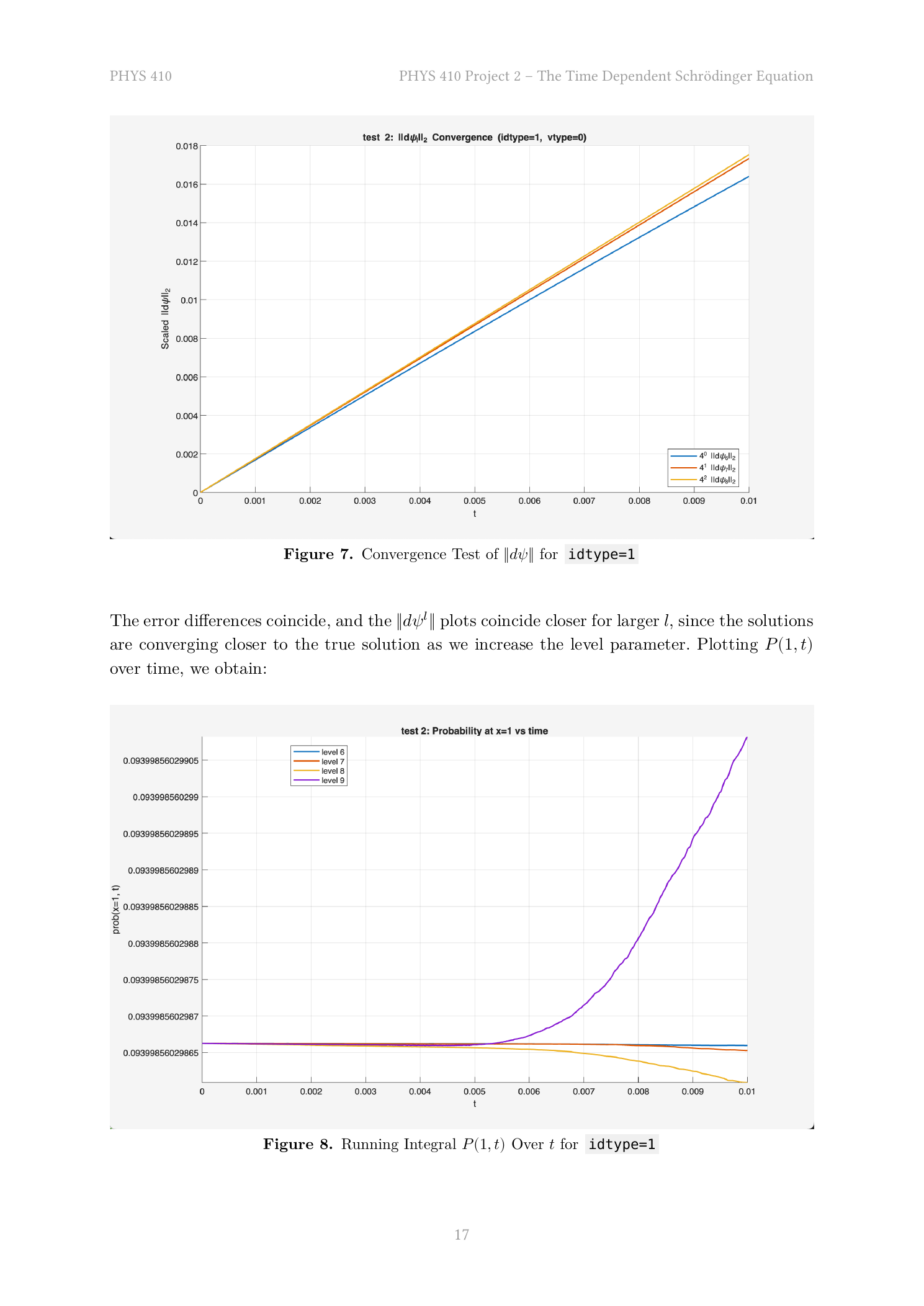

PHYS 410 Project 2 report page 17

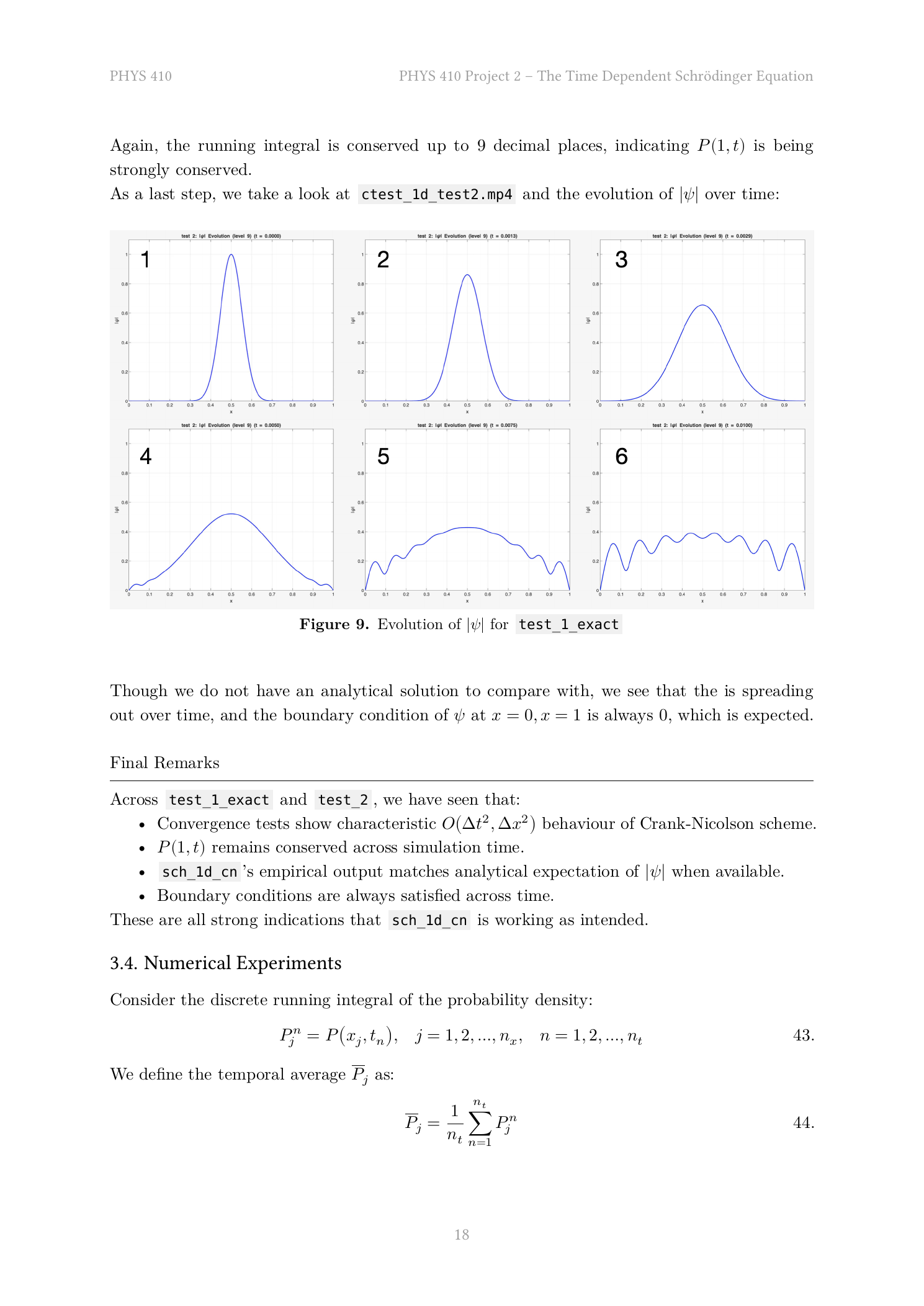

PHYS 410 Project 2 report page 18

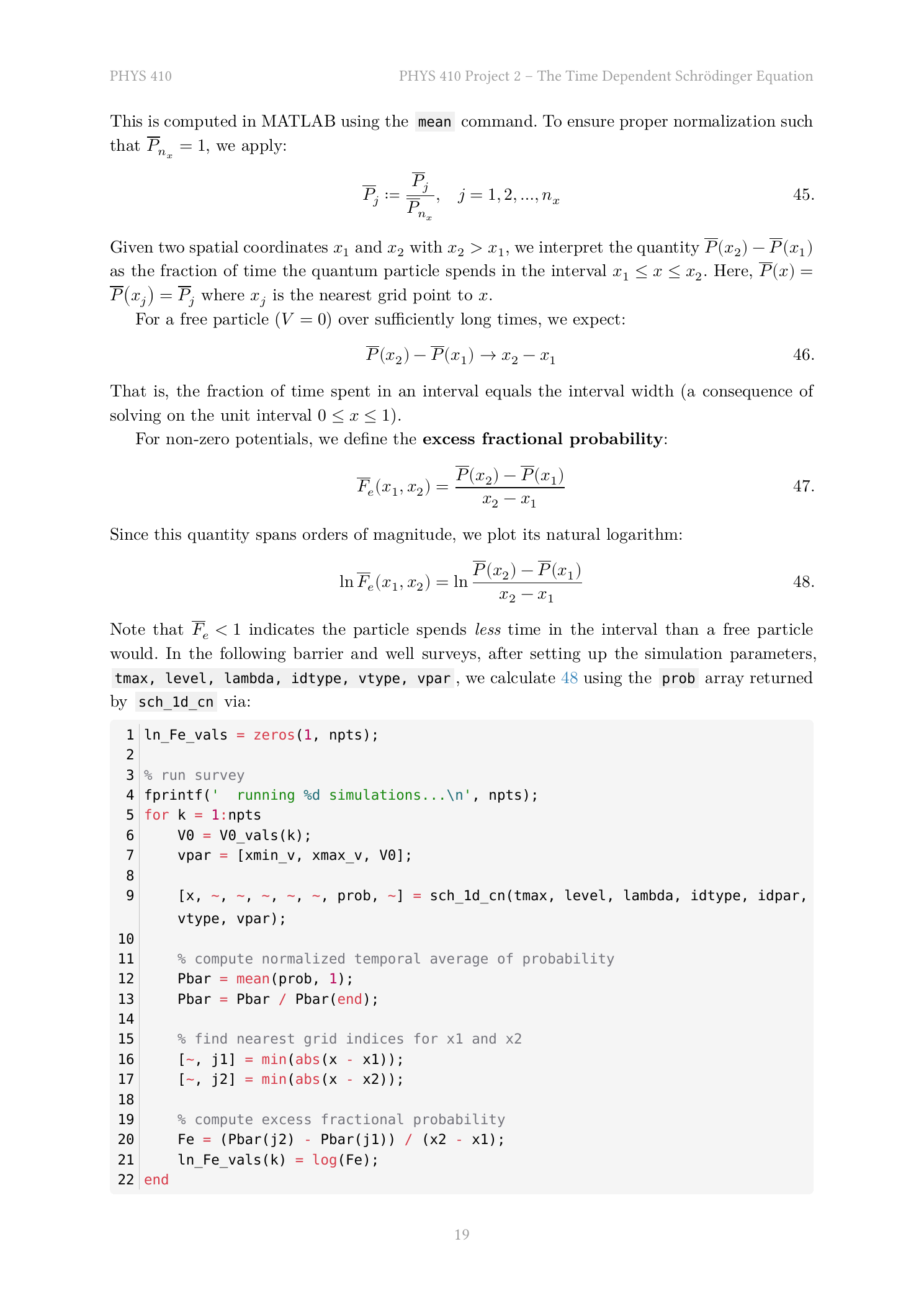

PHYS 410 Project 2 report page 19

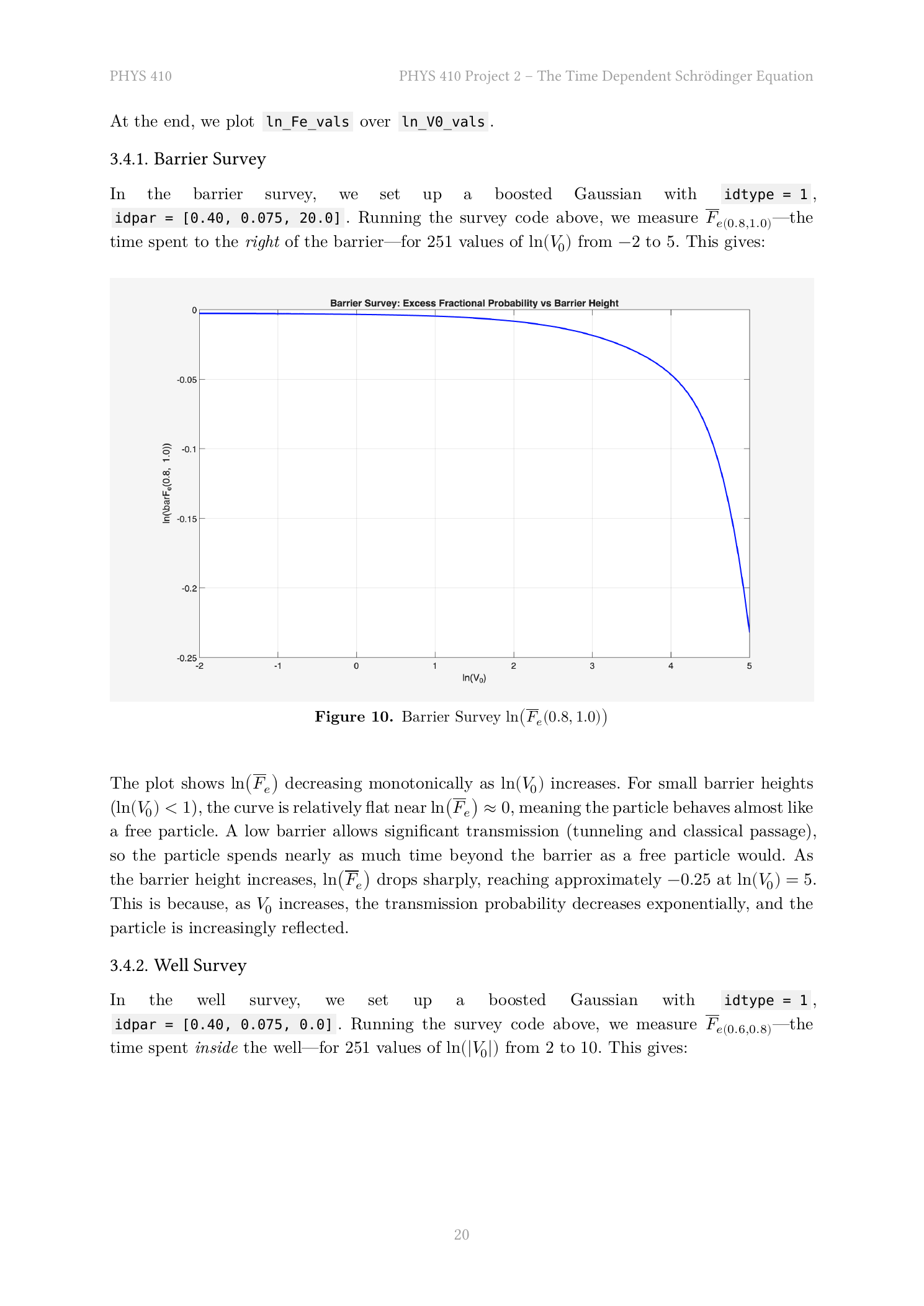

PHYS 410 Project 2 report page 20

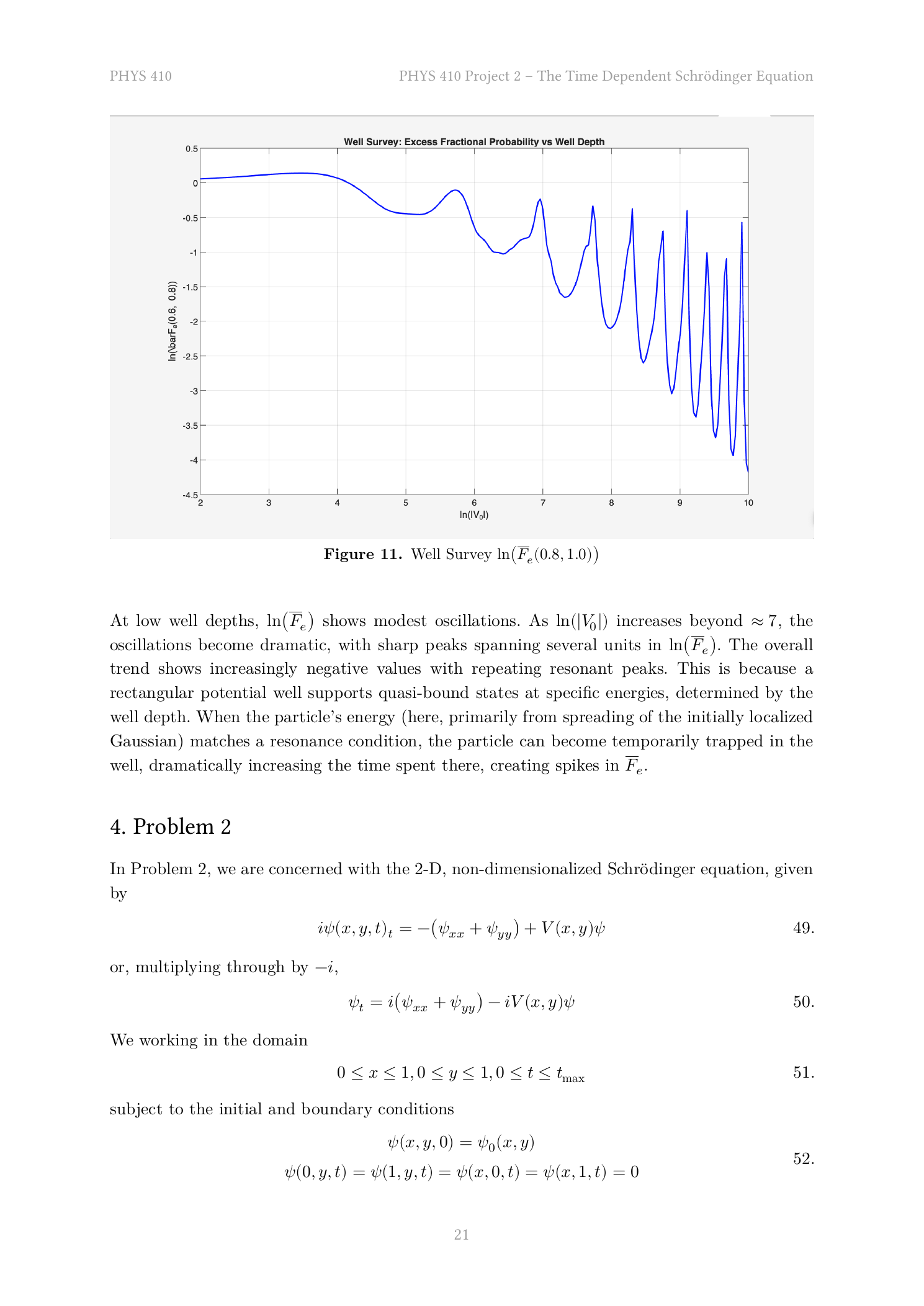

PHYS 410 Project 2 report page 21

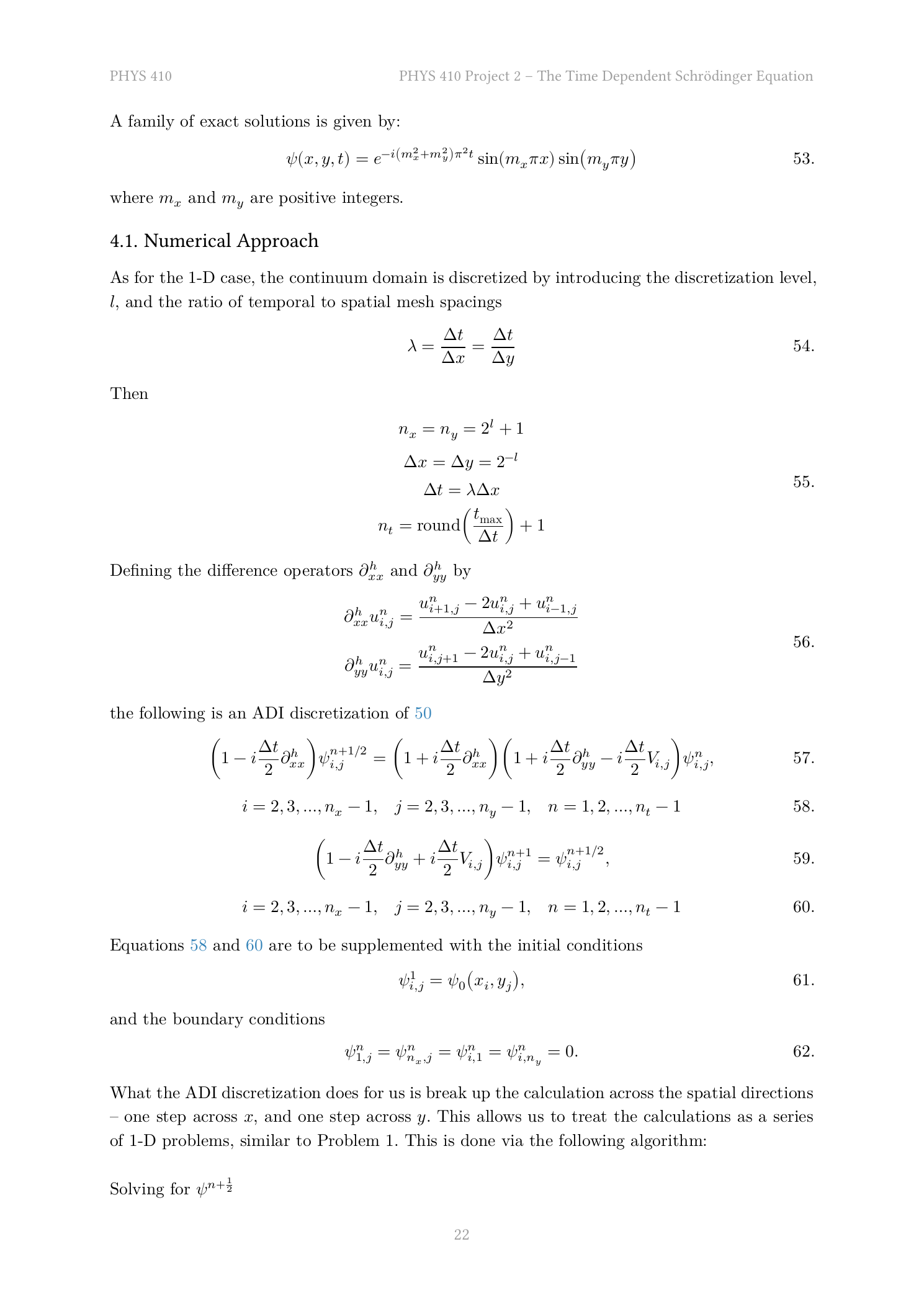

PHYS 410 Project 2 report page 22

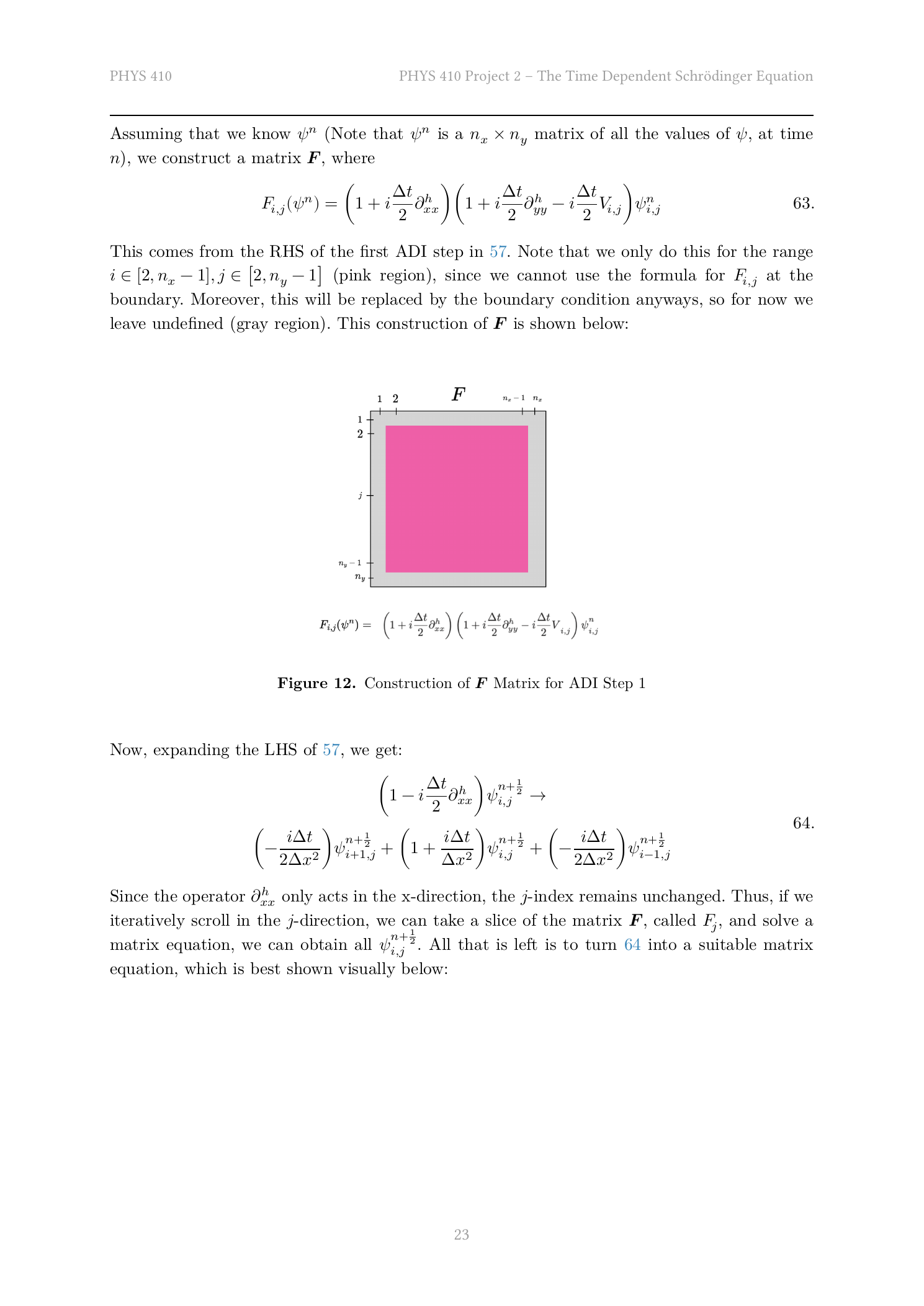

PHYS 410 Project 2 report page 23

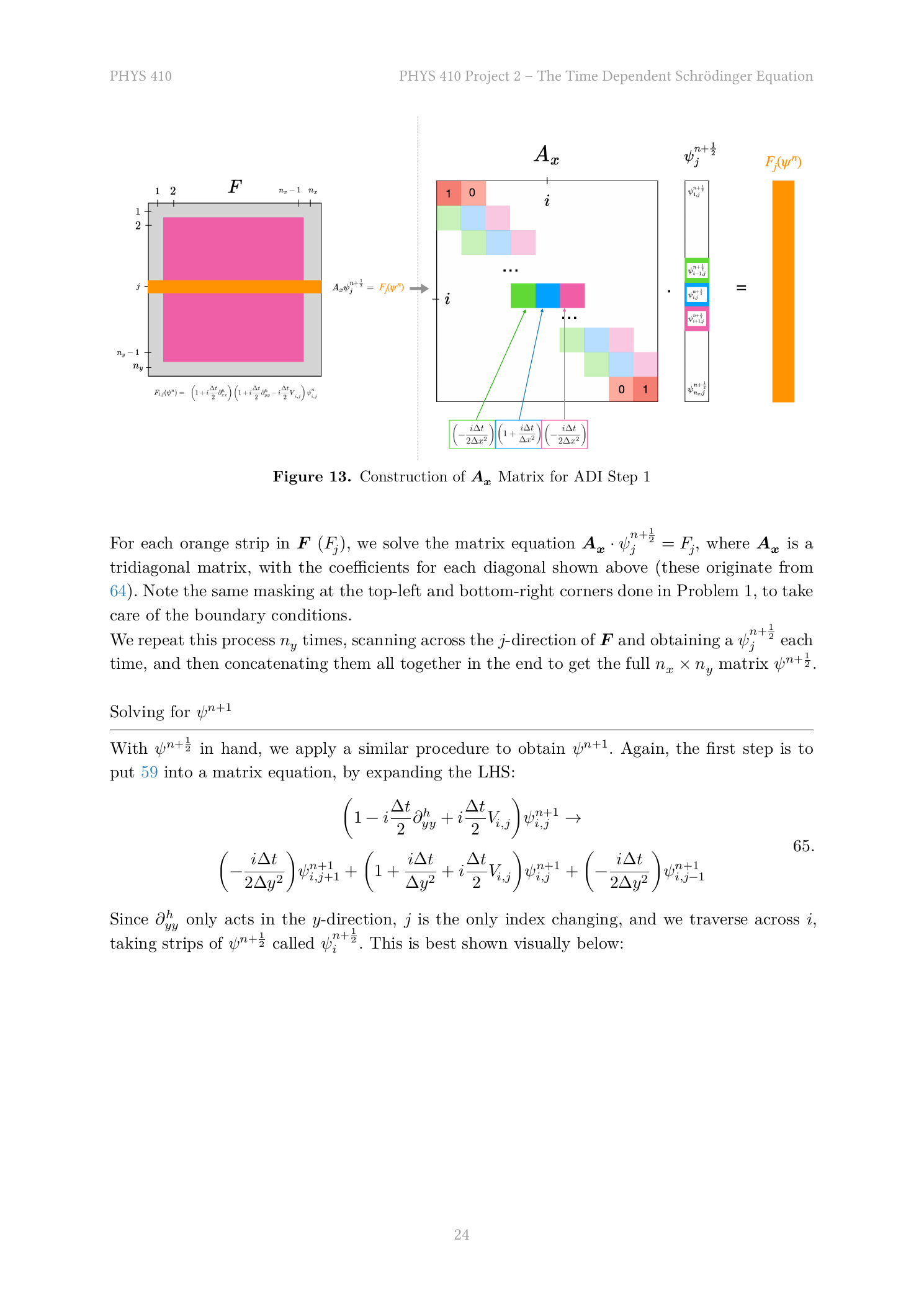

PHYS 410 Project 2 report page 24

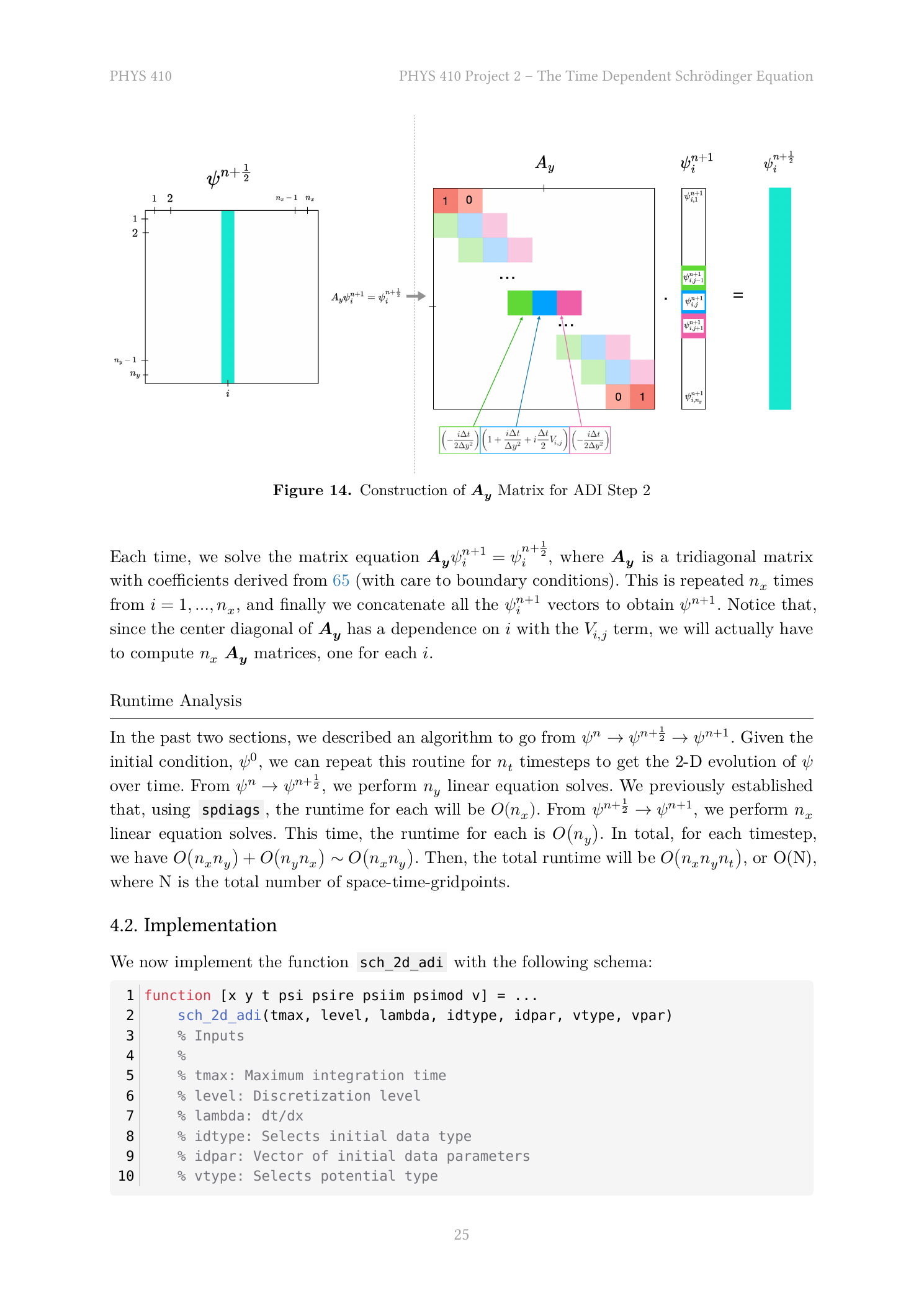

PHYS 410 Project 2 report page 25

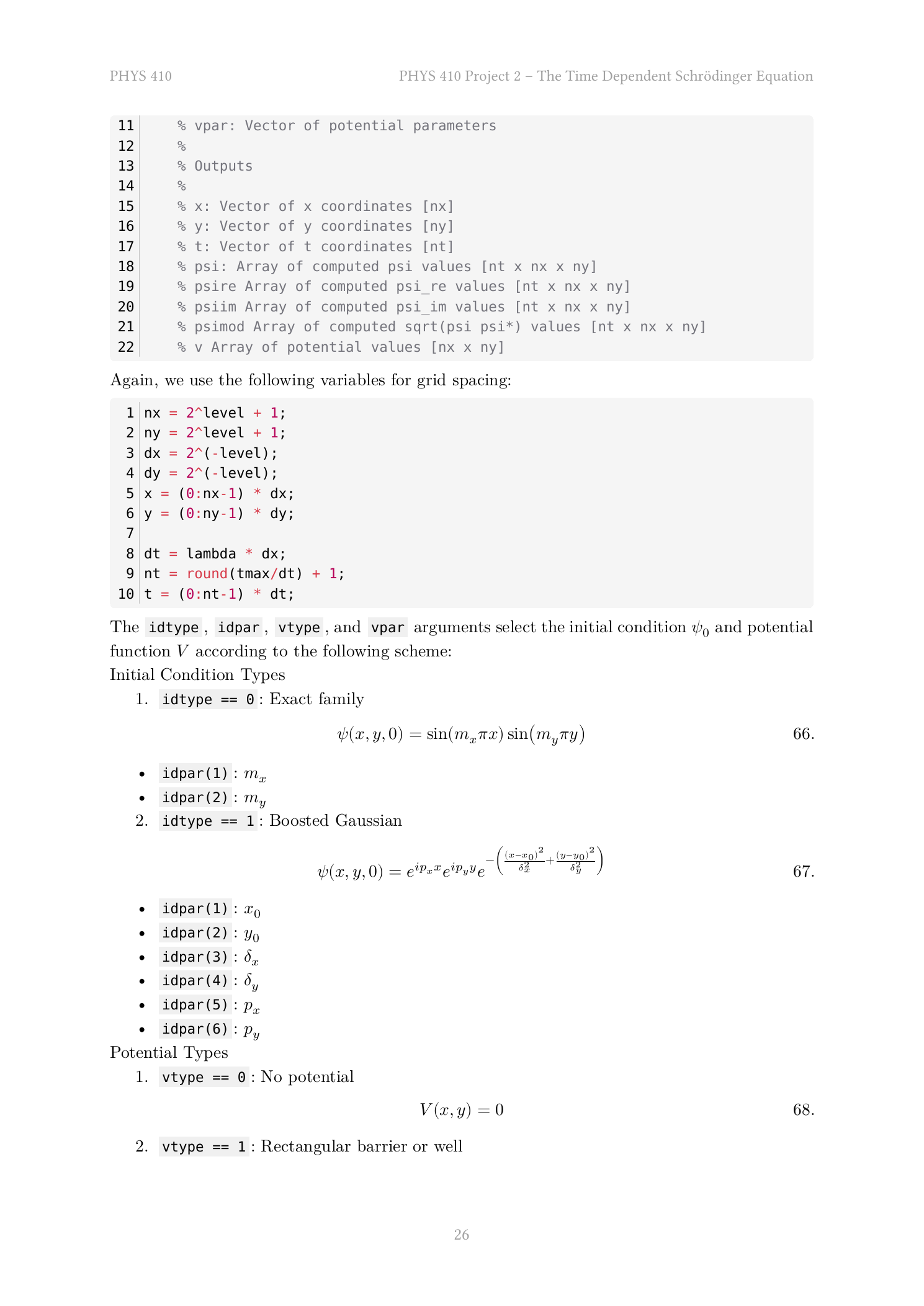

PHYS 410 Project 2 report page 26

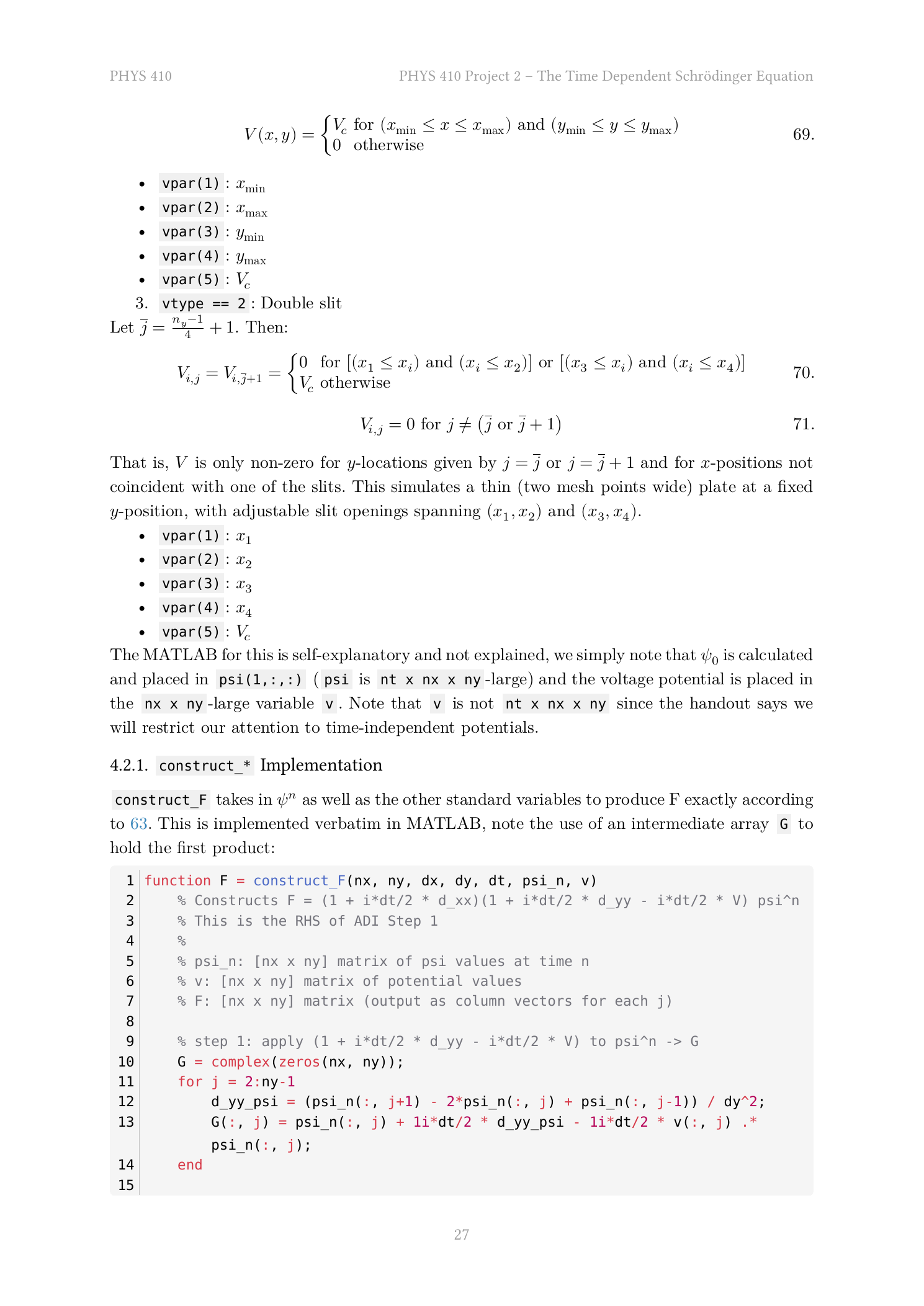

PHYS 410 Project 2 report page 27

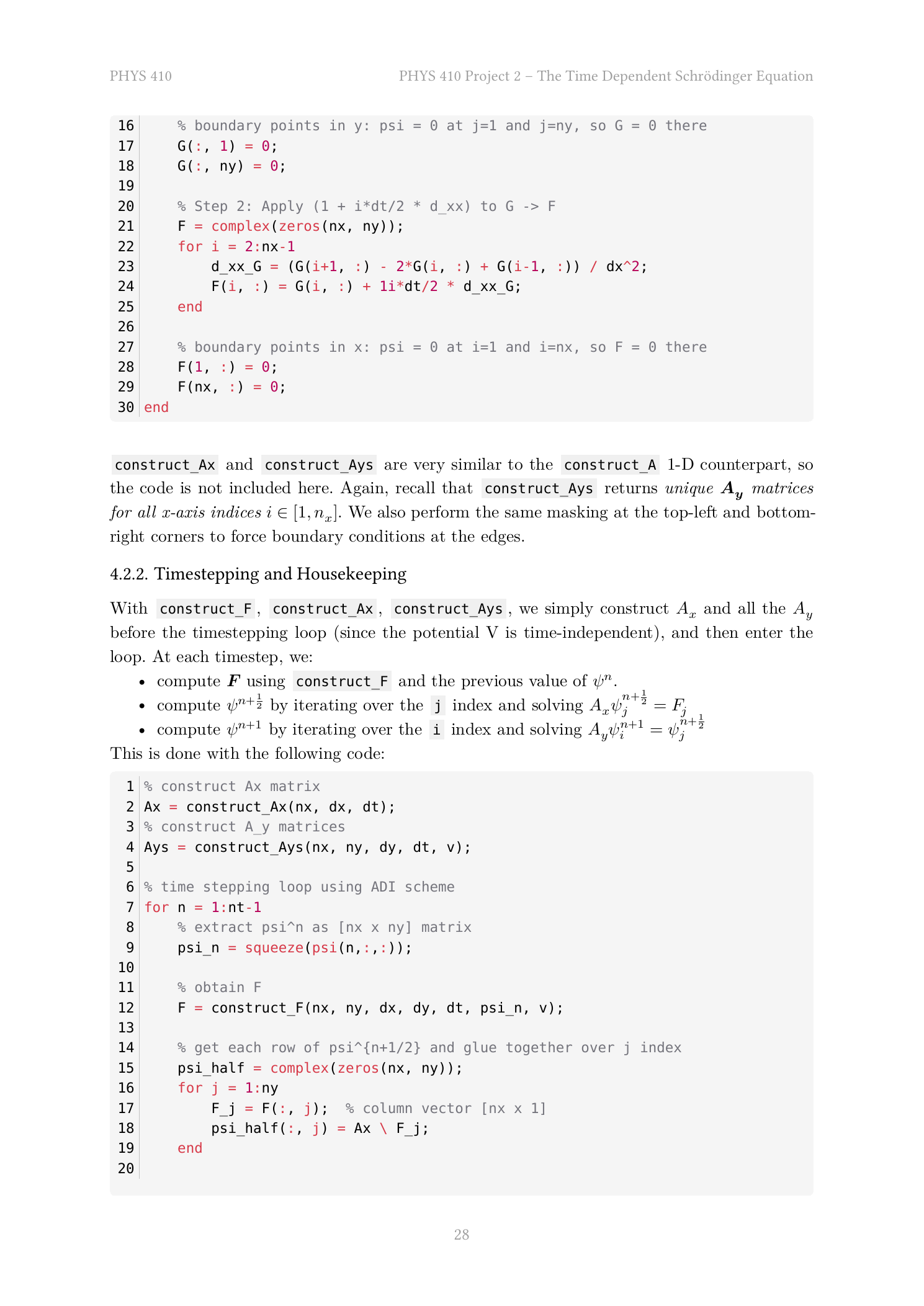

PHYS 410 Project 2 report page 28

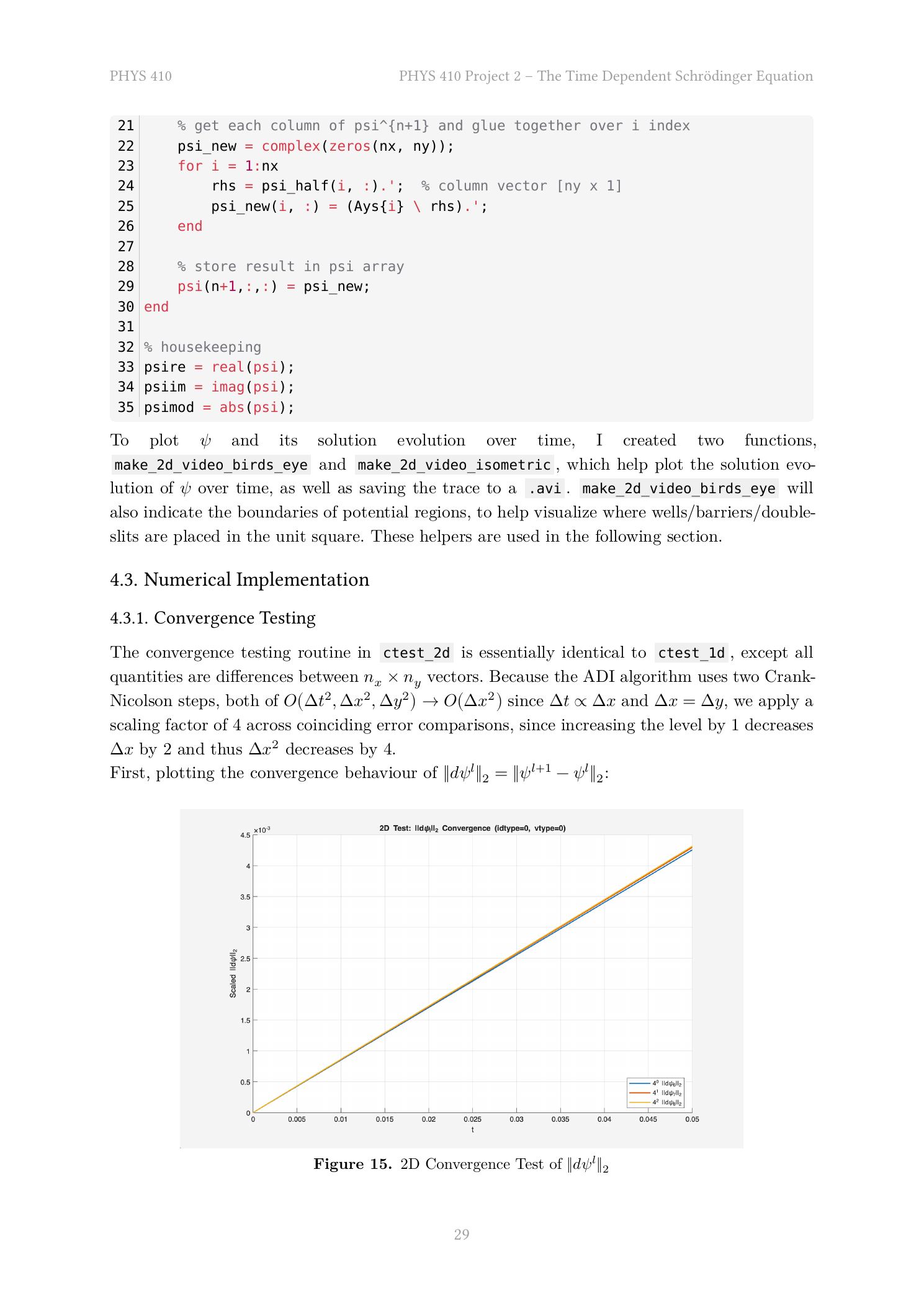

PHYS 410 Project 2 report page 29

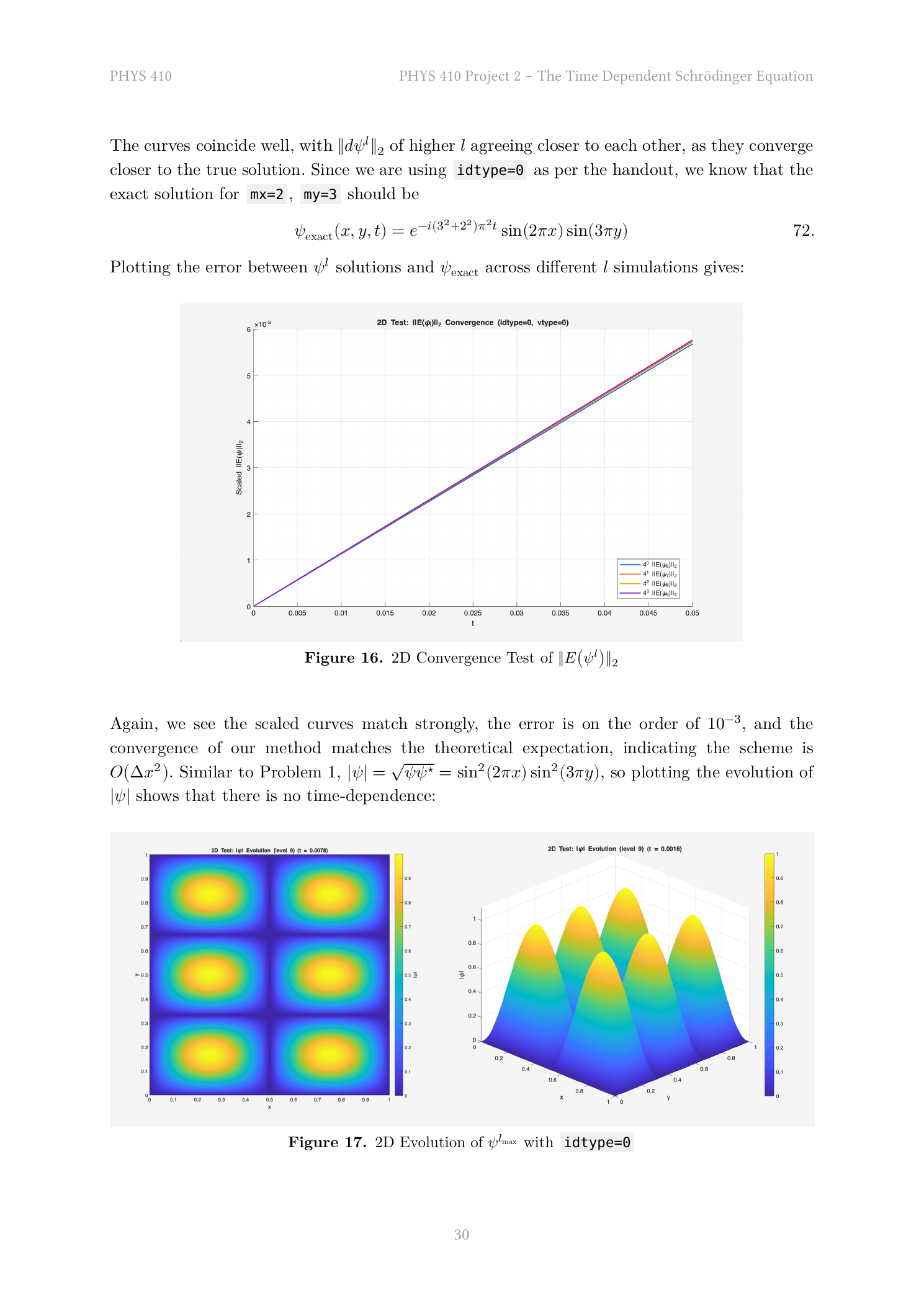

PHYS 410 Project 2 report page 30

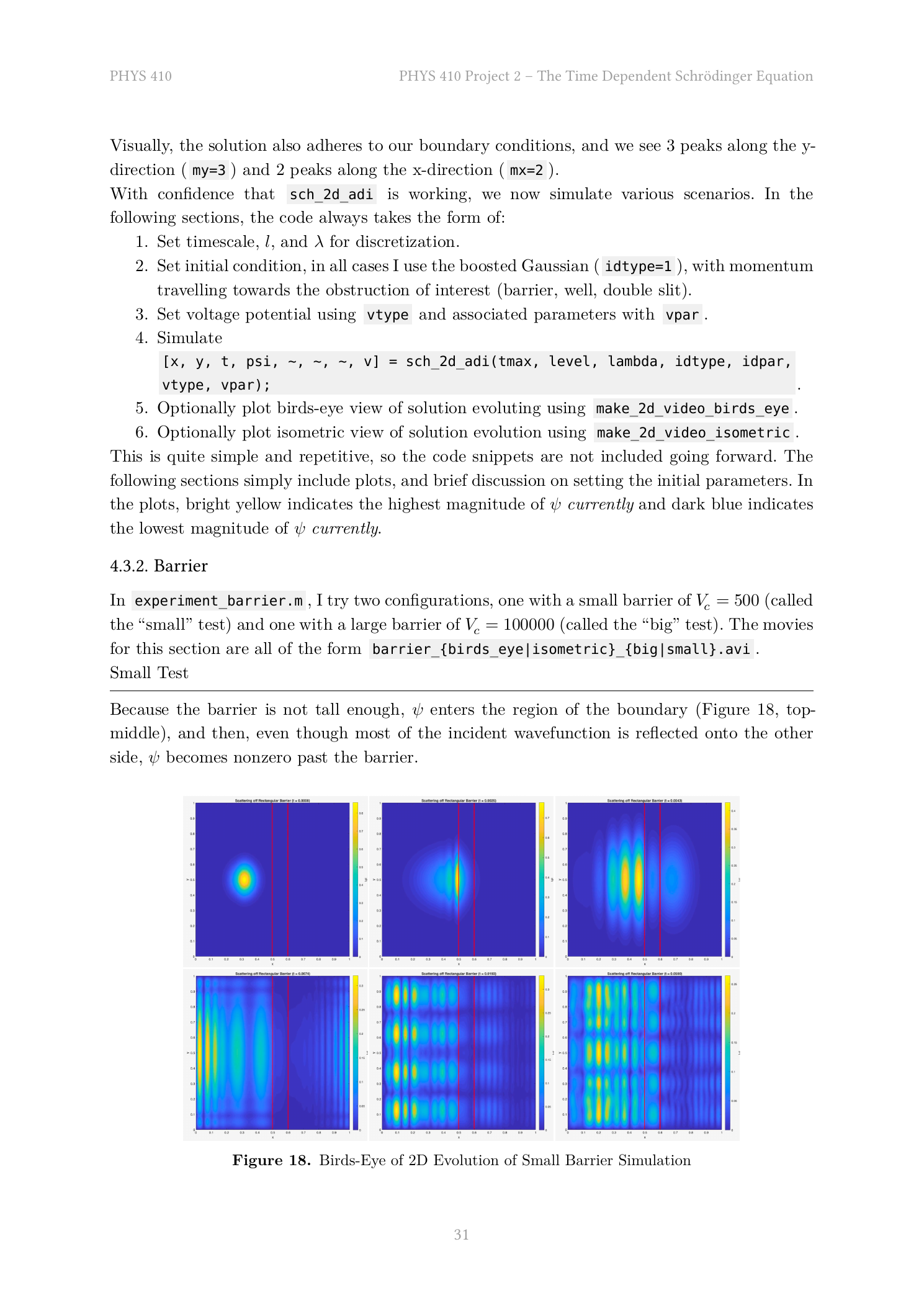

PHYS 410 Project 2 report page 31

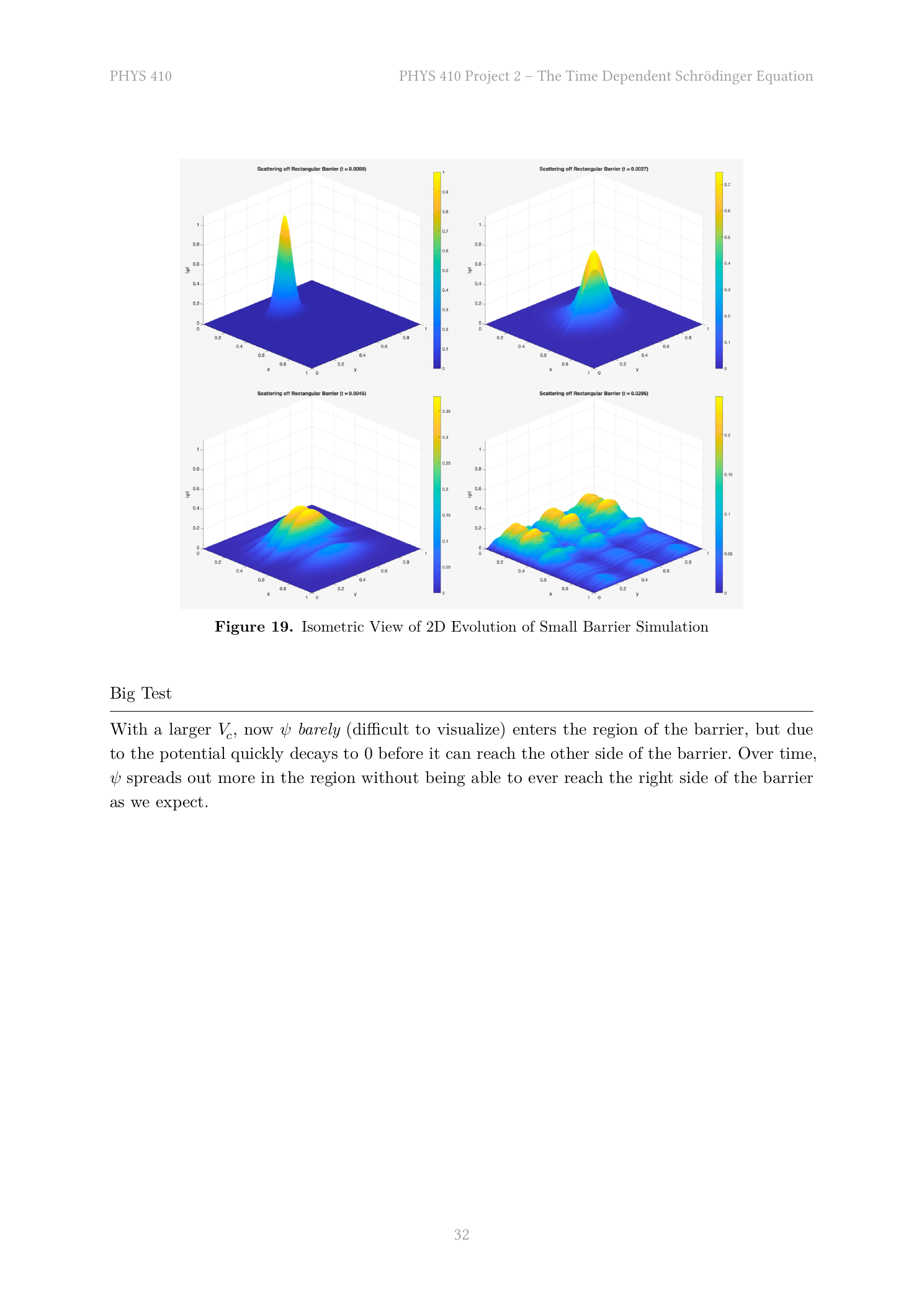

PHYS 410 Project 2 report page 32

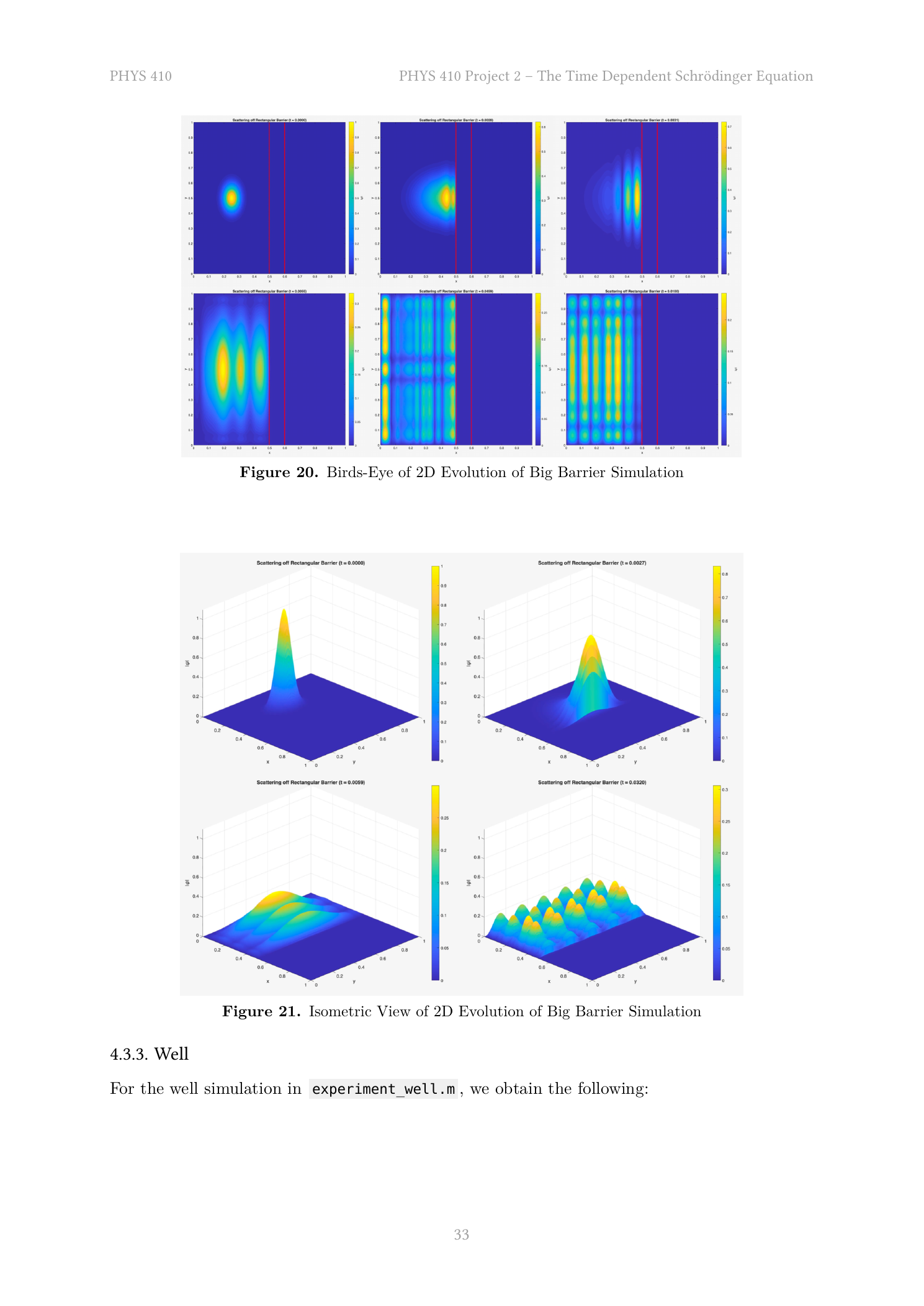

PHYS 410 Project 2 report page 33

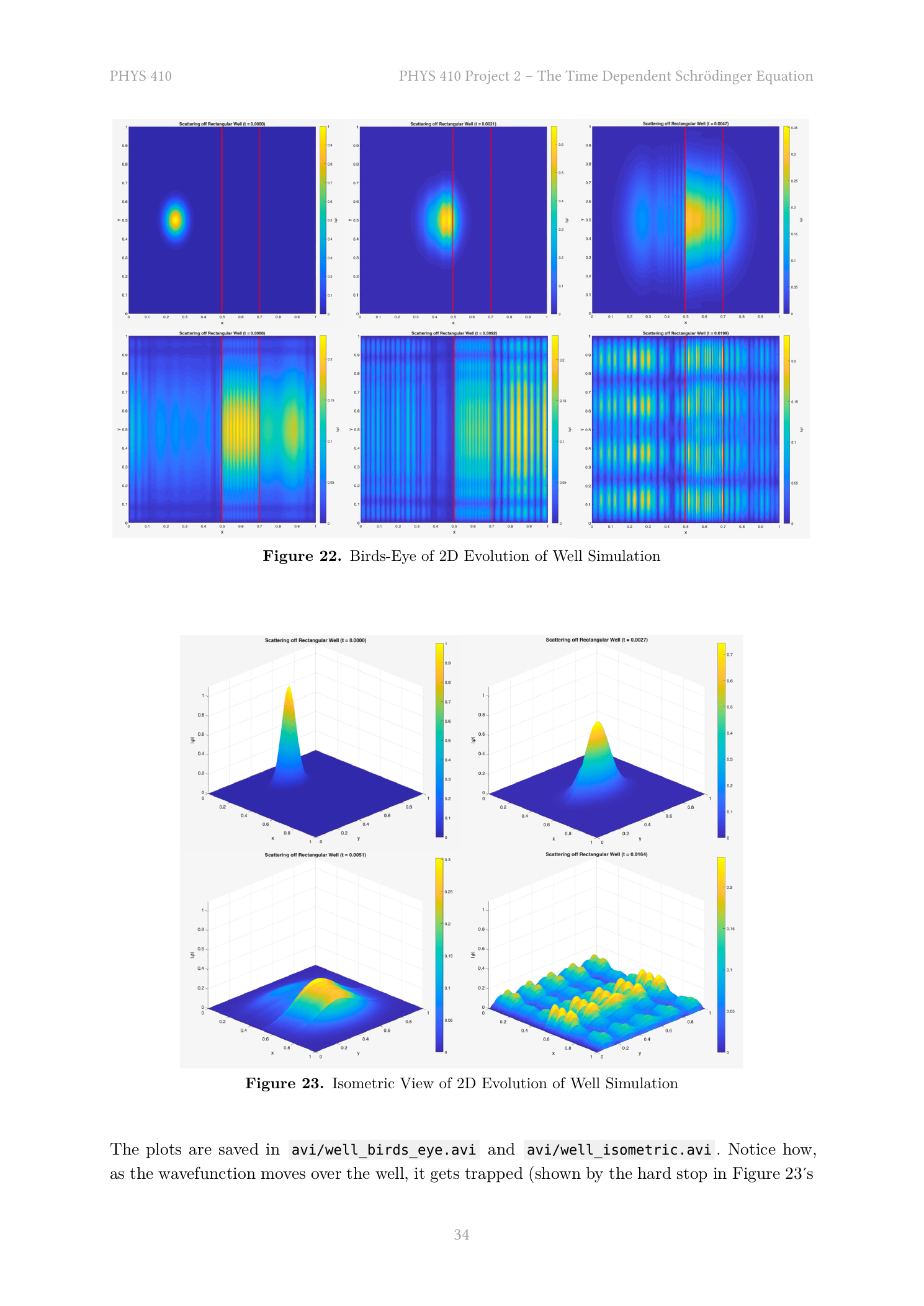

PHYS 410 Project 2 report page 34

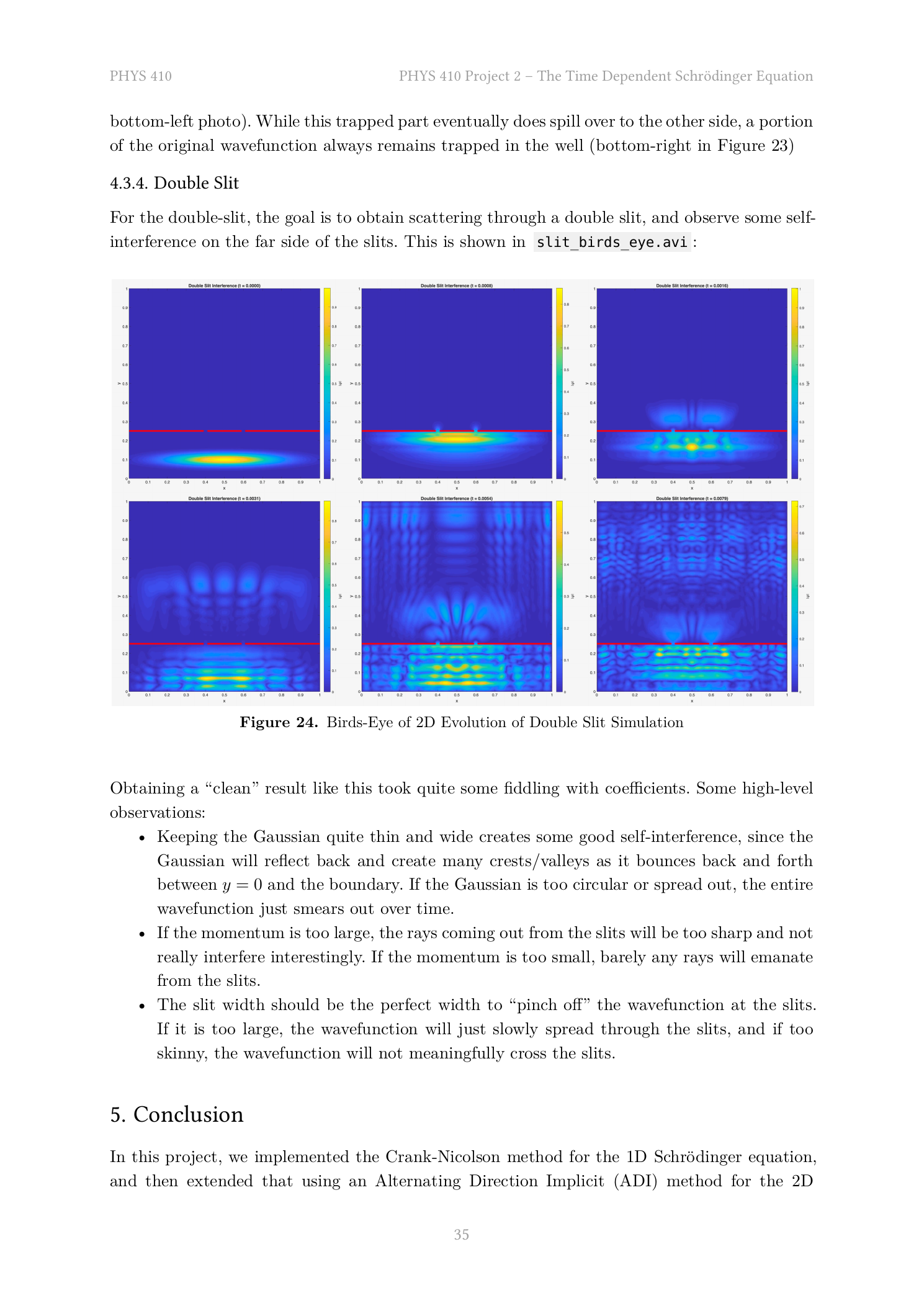

PHYS 410 Project 2 report page 35

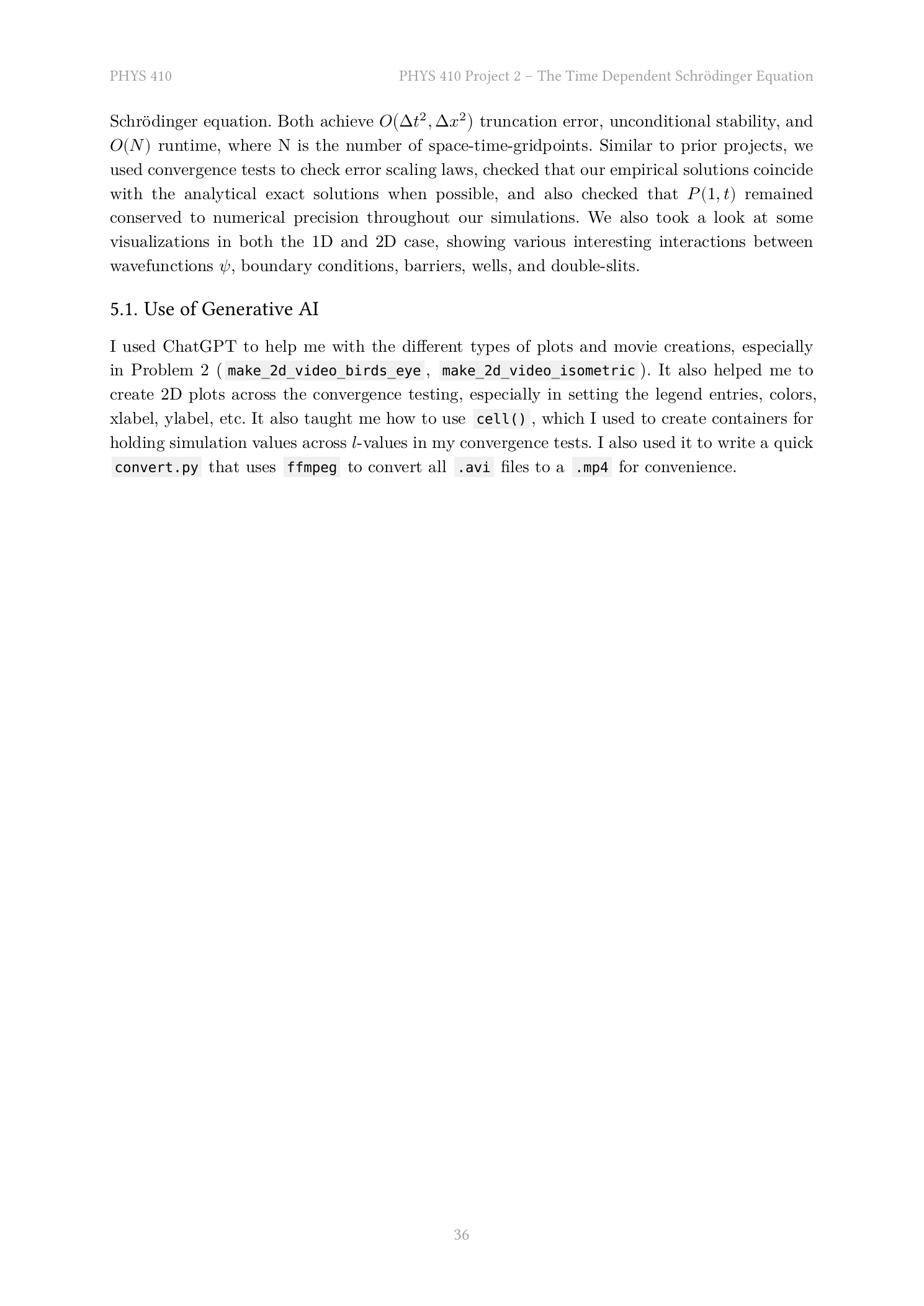

PHYS 410 Project 2 report page 36
