Here’s a design I made for an MC34700 Dual Switching Regulator that provides 1.8V at 1A, and 3.3V at 1.5A. The final design document with datasheet source and formal calculators is here.

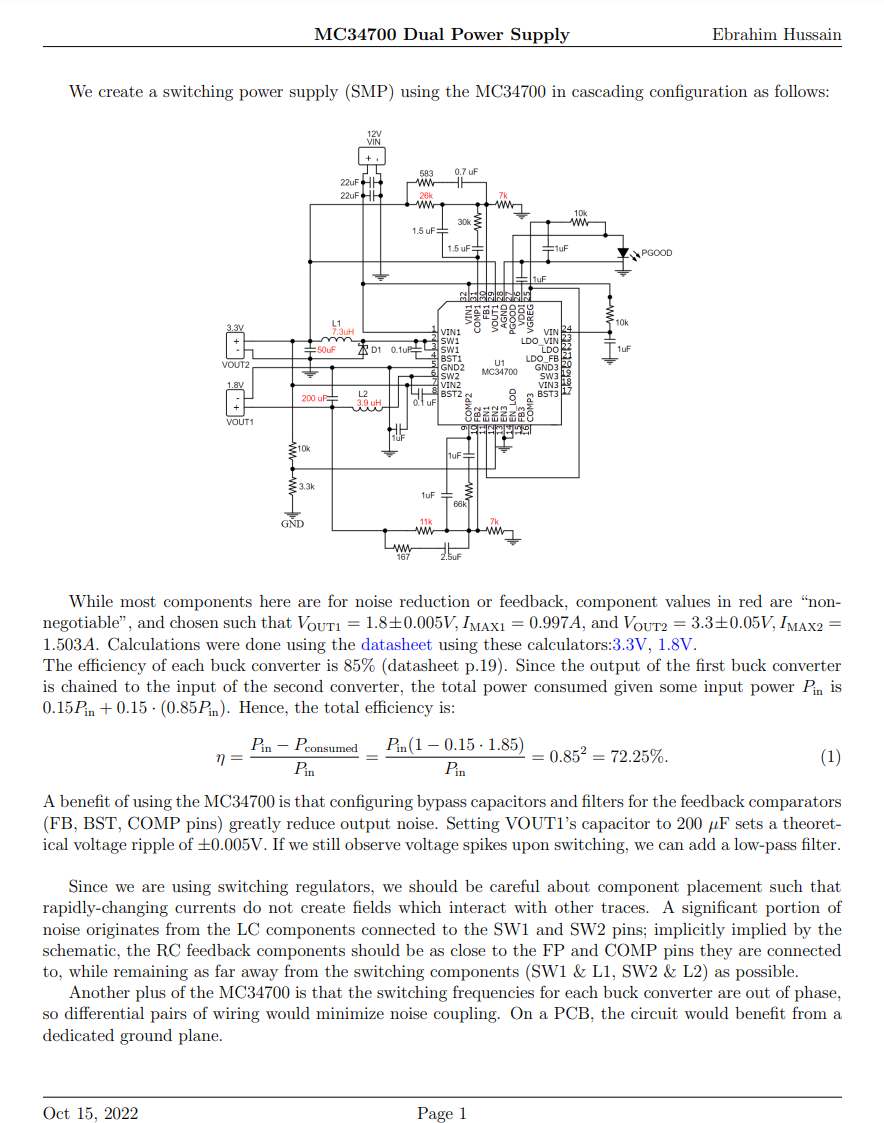

Final Design
%2089d0de462d5c4ac1b0df61f78534bb85/Untitled.png)
Design Notes

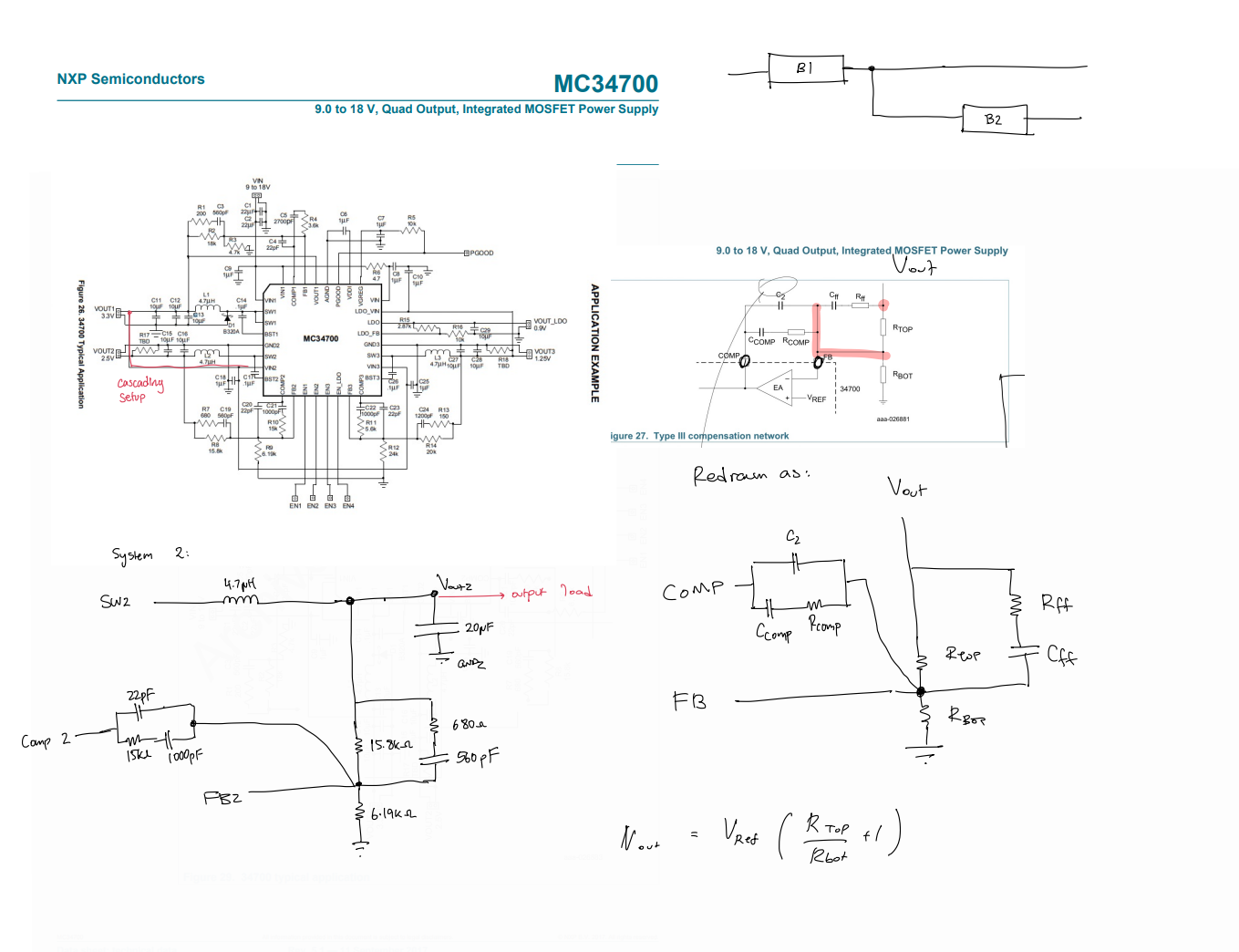

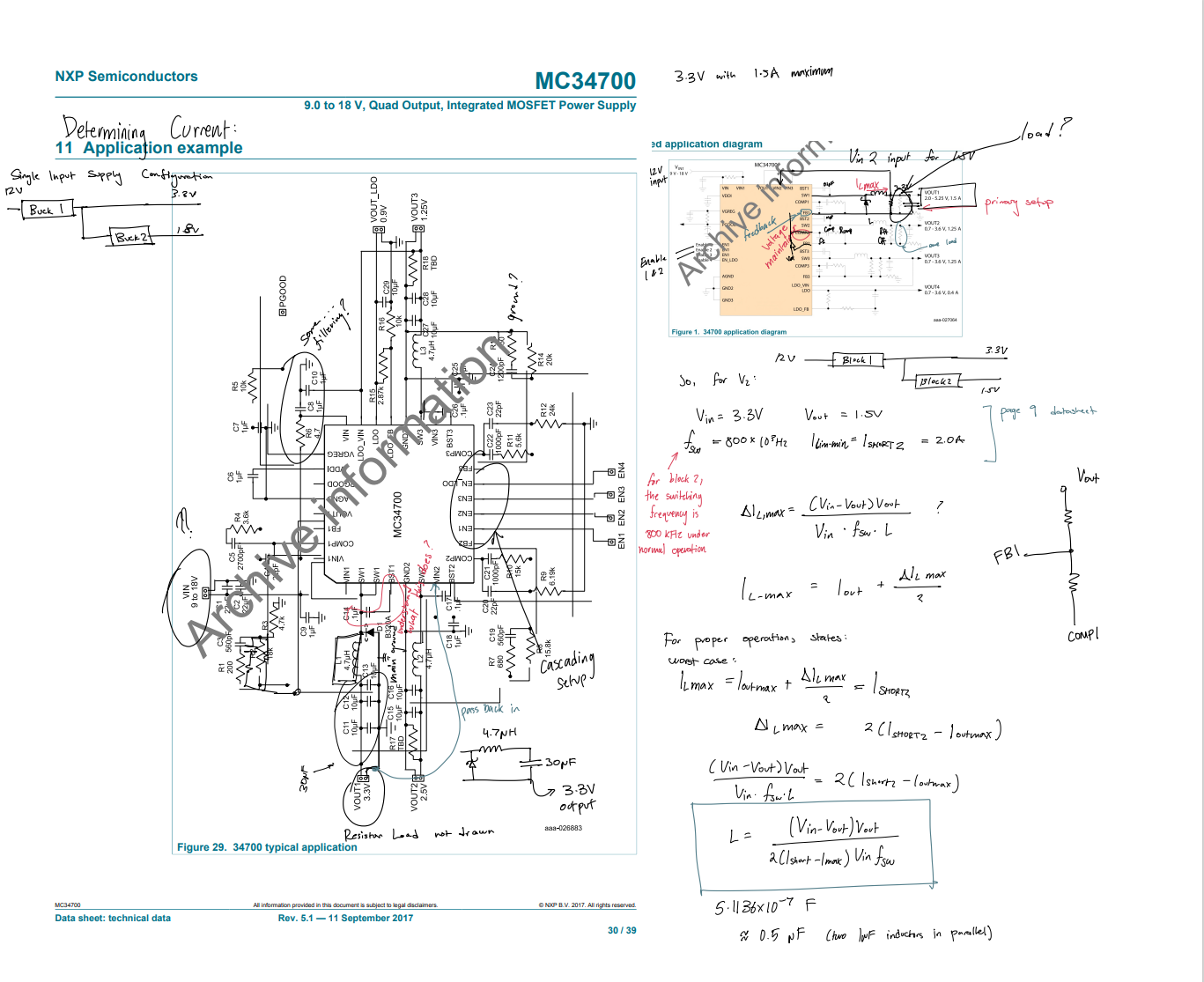

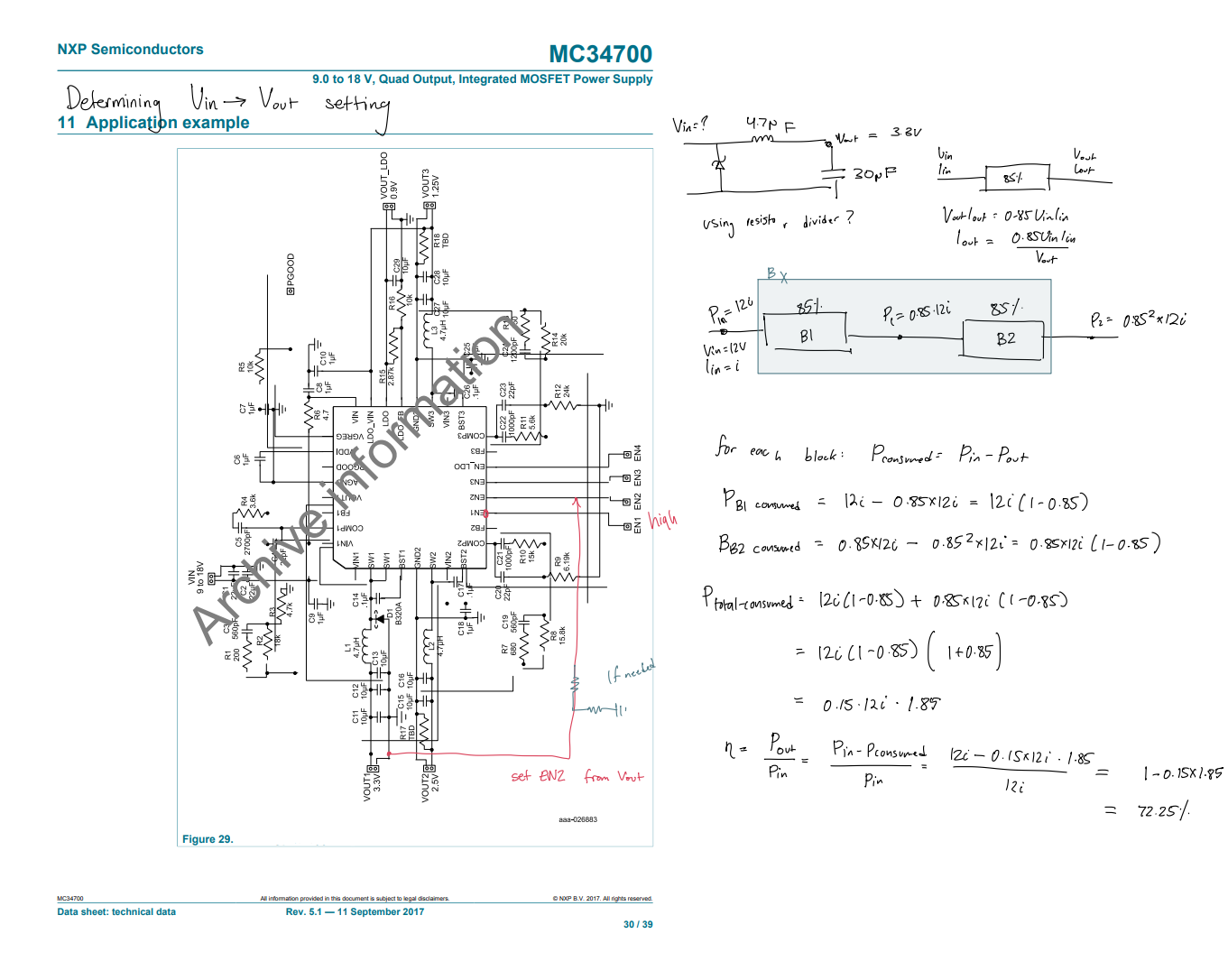

My design notes, including scrap work, are found here. Most of the work starts at around page 23.
%2089d0de462d5c4ac1b0df61f78534bb85/Untitled%201.png)
%2089d0de462d5c4ac1b0df61f78534bb85/Untitled%202.png)
%2089d0de462d5c4ac1b0df61f78534bb85/Untitled%203.png)
